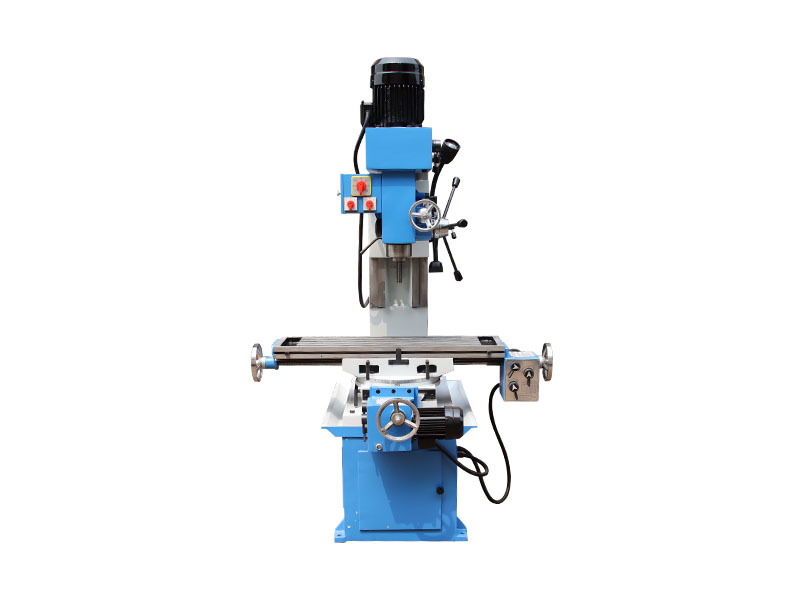

ZX50C Drilling and Milling Machine Small Drilling and Milling Machine
Keyword:
ZX50C Drilling and Milling Machine Small Drilling and Milling Mac
Telephone:13793702928
- Product Detail
- Feature
- Accessories
-
- Commodity name: ZX50C Drilling and Milling Machine Small Drilling and Milling Machine
Machine tool use

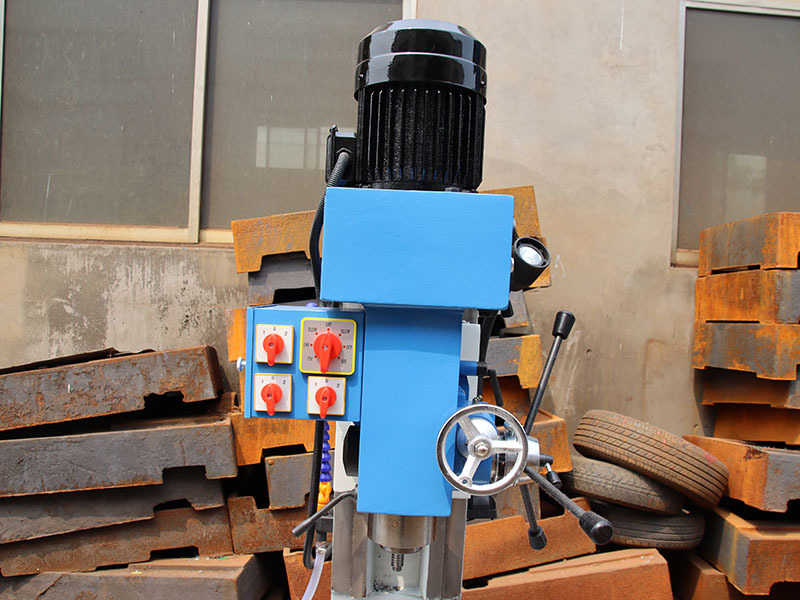

The guide rail surface of the ZX50C drilling and milling machine has been heat treated to have high hardness and strong rigidity. The gears are ground teeth and have been quenched and tempered by high frequency to have low noise and durability.
The electronic control part uses pure copper motors and national 3C certified products, which are safe, stable and have a long life.
The ZX50C drilling and milling machine can be used for various forms of processing such as drilling, enlarging, reaming, tapping and scraping end faces. It is widely used in
Mechanical processing in large, medium and small enterprises, townships and individual industries, and processing of small and medium-sized parts in various machine manufacturing industries. It is also suitable for repair workshops .
Machine parameters
Technical Parameters
ZX50C
End milling capability
25mm _
End milling capability
1 0 0mm
drilling capacity
50mm
Boring capacity
120mm
Maximum tapping diameter
16mm
working desk size
800 × 2 4 0mm
Maximum longitudinal stroke
400mm _ _
Maximum lateral stroke
240mm _
Maximum rotation angle of worktable
45
Spindle travel
1 2 0mm
Distance from spindle end face to worktable
38-430 mm
Distance from spindle center to column
3 2 0mm
End milling spindle taper
MT4
Spindle speed
40-1400 r/min
Motor Power
1.5/ 2.2kw
Dimensions
1 4 00 × 900 × 150 0mm
Machine tool net weight
600kg _
-
机床特点
1.钻铣床工作台可纵、横向移动，主轴垂直布置，通常为台式、机头可上下升降，
具有钻、铣、镗、磨、攻丝等多种切削功能机床。主轴箱可垂直平面内左右回转90°，
部分机型工作台可在水平面内左右回转45°，多数机型工作台可纵向自动走刀。
2.钻铣床结构先进、合理，操作轻便灵活，维护方便。
3.钻铣床上的加工的工件，一般都能达到IT8级精度和粗糙度的要求。

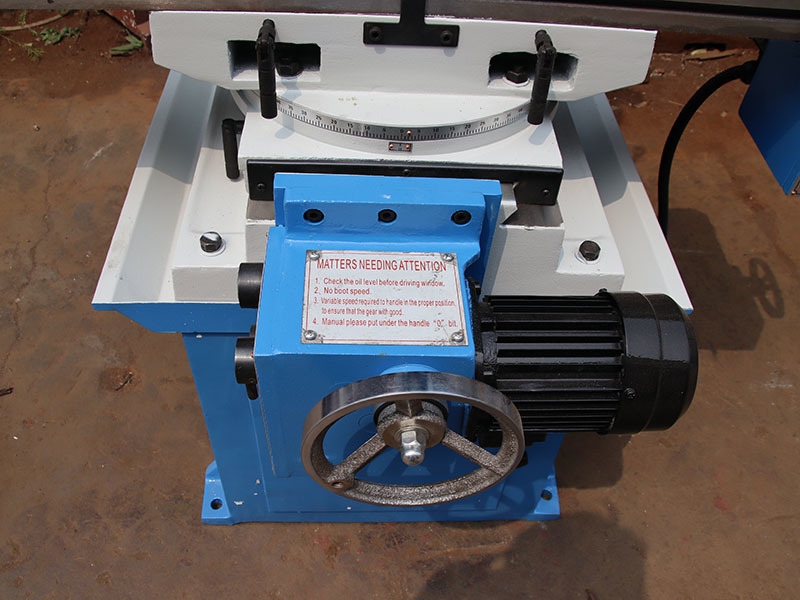

4.钻铣床工作台的纵、横和垂直各方向可手动进给，工作台亦可作正反两个方向的纵向和横向自动进给，
并没有限位停止的安全保护装置。
-
序号
名称
数量
1
X向电子走刀器
1
2
数显
1
3
平口钳
1
4
铣夹头
1
5
组合压板
1
6
工具箱
1
7
拉杆
1
8
升降曲柄
1
9
手轮
1
10
进刀手柄
1
11
梅花扳手
1
12
开口扳手
1
13
说明书
1
14
塑料油壶
1
15
一字螺丝刀
1
16
十字螺丝刀
1
17
内六角扳手
1
