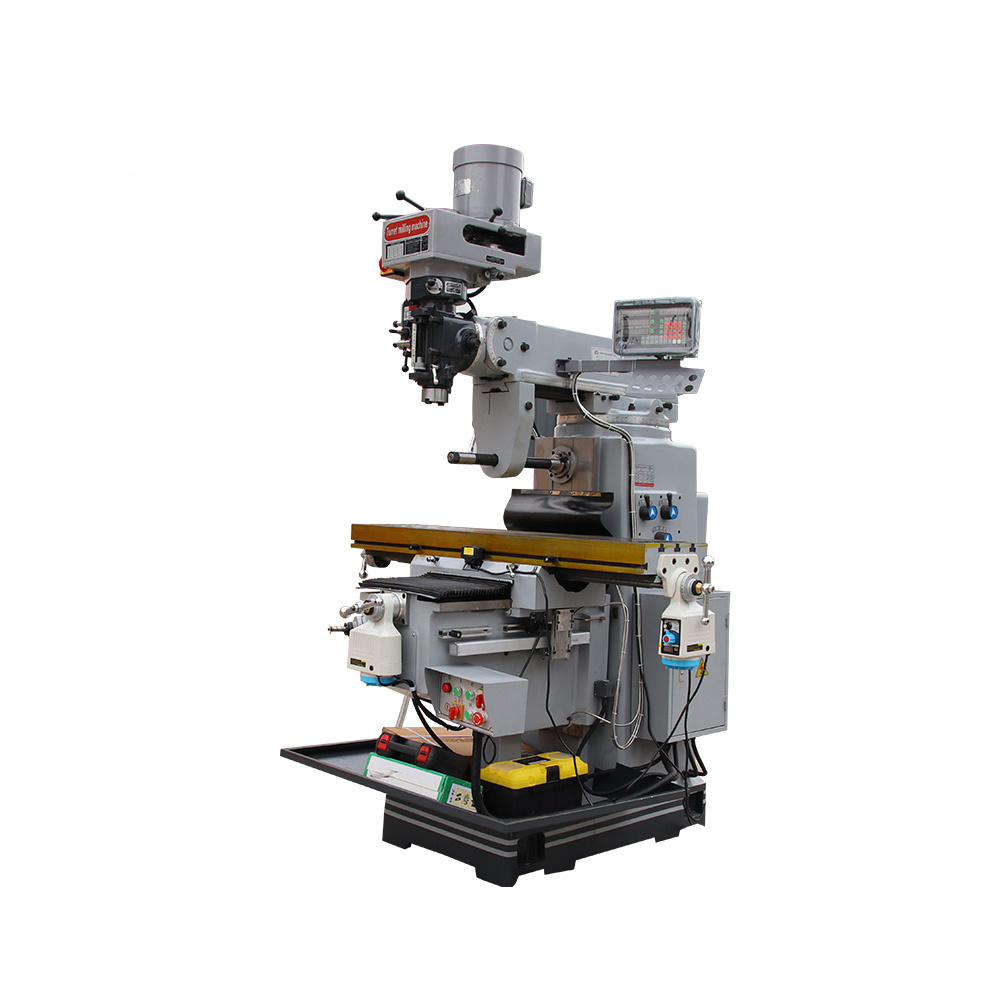

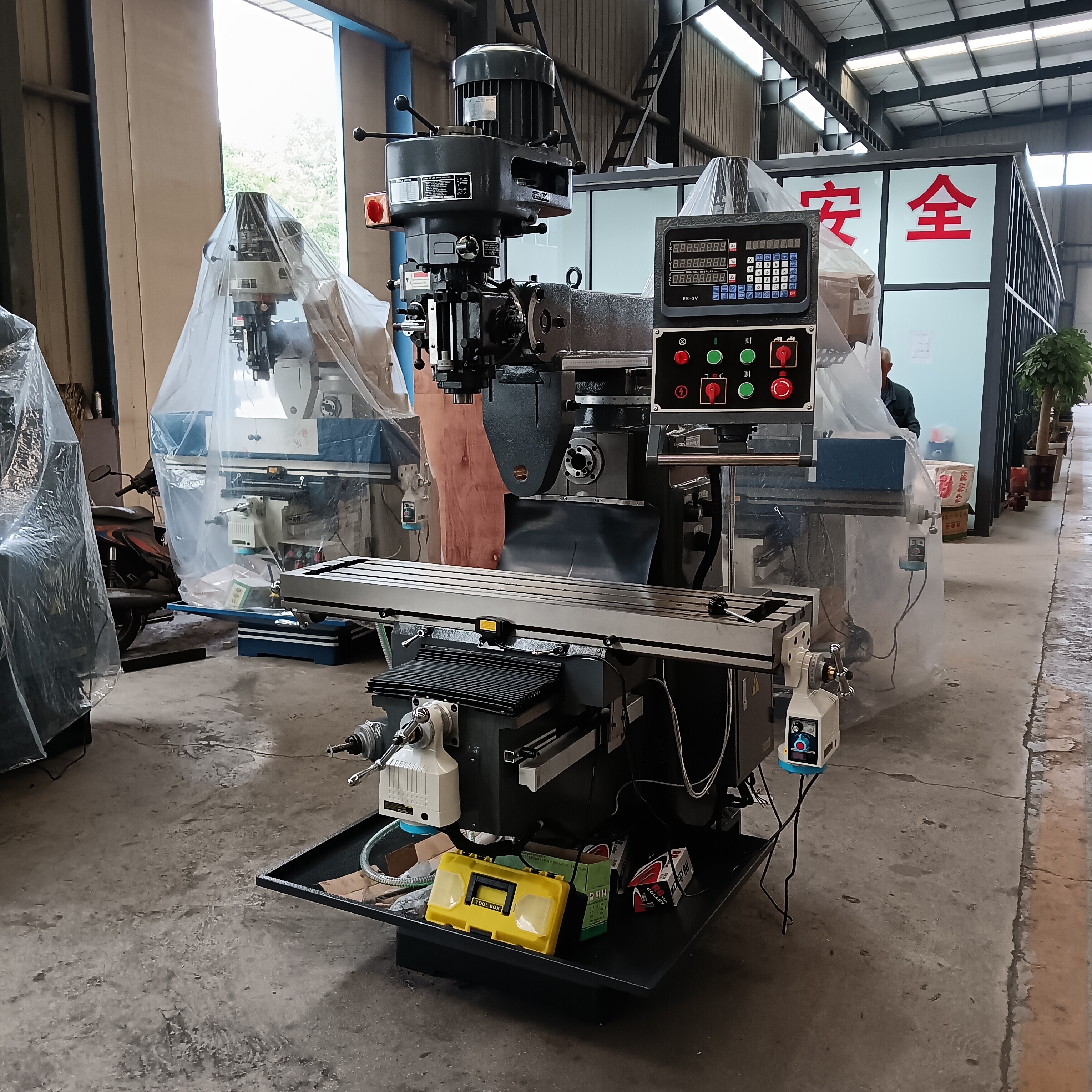

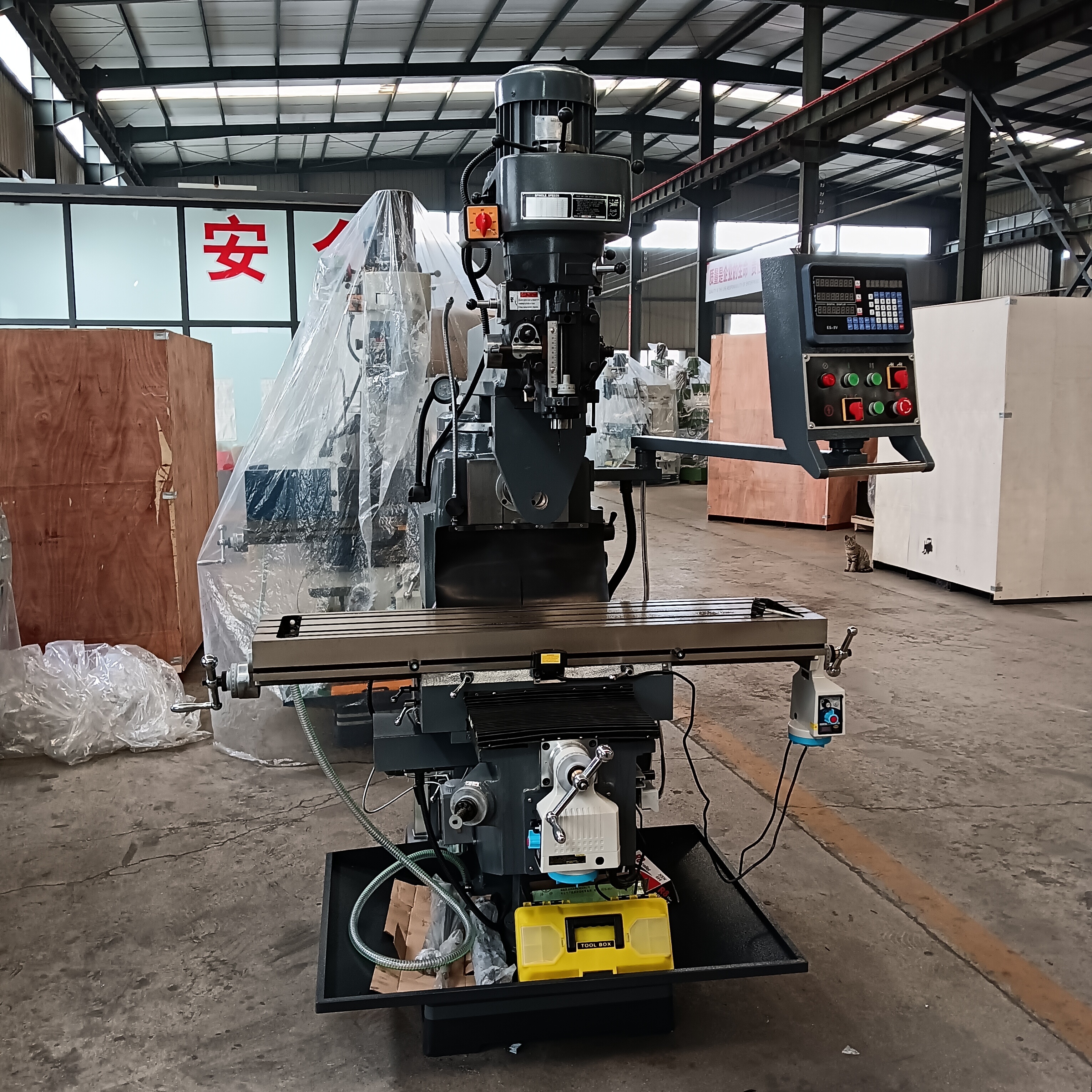

- Commodity name: 5HW Taiwan turret milling machine vertical turret milling machine
Machine Tool Usage
This series of machine tools has a wide range of uses. It not only has multi-functions such as milling, boring, drilling, tapping, etc., because the workbench can move along the X, Y, and Z axes,In addition, the milling head can rotate around the three-axis axis, so the processing performance of this machine tool is very good, and it can process planes and forming surfaces at any angle.
It is used in maintenance and production workshops of various enterprises, especially in the manufacturing of tools, fixtures, molds, etc.
Machine parameters
Machine model
5HW
Workbench area
1570*320
OK Procedure
X- axis ( mm )
980-1050
Y axis ( mm )
345-365
Z axis ( mm )
400-460
host axis
Spindle taper
R8 NT30 NT40
Spindle travel ( mm )
127
Spindle speed
16 speed
Spindle feed ( mm )
0.076/0.003 0.038/0.0015 0.203/0.008
Spindle low speed ( r/min )
66 , 110 , 175 , 270 , 550 , 930 , 1460 , 2270
Spindle high speed ( r/min )
132 , 220 , 350 , 540 , 1100 , 1860 , 2920 , 4540
T slot
Number of slots X width ( mm )
3X16
T- slot spacing ( mm )
75
electricity machine
Voltage( V )
380
Frequency ( HZ )
50
Machine head voltage
3HP/2.2KW 5HP/3.7KW
Boost and drop voltage
1.1Kw
Maximum working weight ( Kg )
350
Machine tool dimensions ( mm )
1800 (length) X 1780 (width) X 2250 (height)
Net weight ( kg )
1400/1500
-
机床特点
1、本系列机床结构紧凑、体积小、灵活性高， 铣头能在 X 方向回转360˚，在 Y 方向回转±90˚，在 Z 方向回转±45˚，因而加工零件尺寸允许大于工作台面。
2、机床铣头采用台湾精密高速铣头。该铣头具有主轴转速高、变速范围大，可充分发挥刀具效能；主轴套筒能自动进给，自动停刀，铣头内装有微调限位元和超载保护装置，能有效地保证刀具的准确定位和一定的切削深度。
3、机床工作台和升降台采用集中式润滑机械。机床配备有一召手压油泵，利用油泵的供油来润滑导轨副和丝杆螺母副。
4、机床进给可以手动或机动，机动进给是加装自动进给器来实现的。如果用户确有需要机动进给，可以订货时增订自动进给器。 -
序号
名称
数量
1
X向电子走刀器
1
2
数显
1
3
平口钳
1
4
铣夹头
1
5
组合压板
1
6
工具箱
1
7
拉杆
1
8
升降曲柄
1
9
手轮
1
10
进刀手柄
1
11
梅花扳手
1
12
开口扳手
1
13
说明书
1
14
塑料油壶
1
15
一字螺丝刀
1
16
十字螺丝刀
1
17
内六角扳手
1
