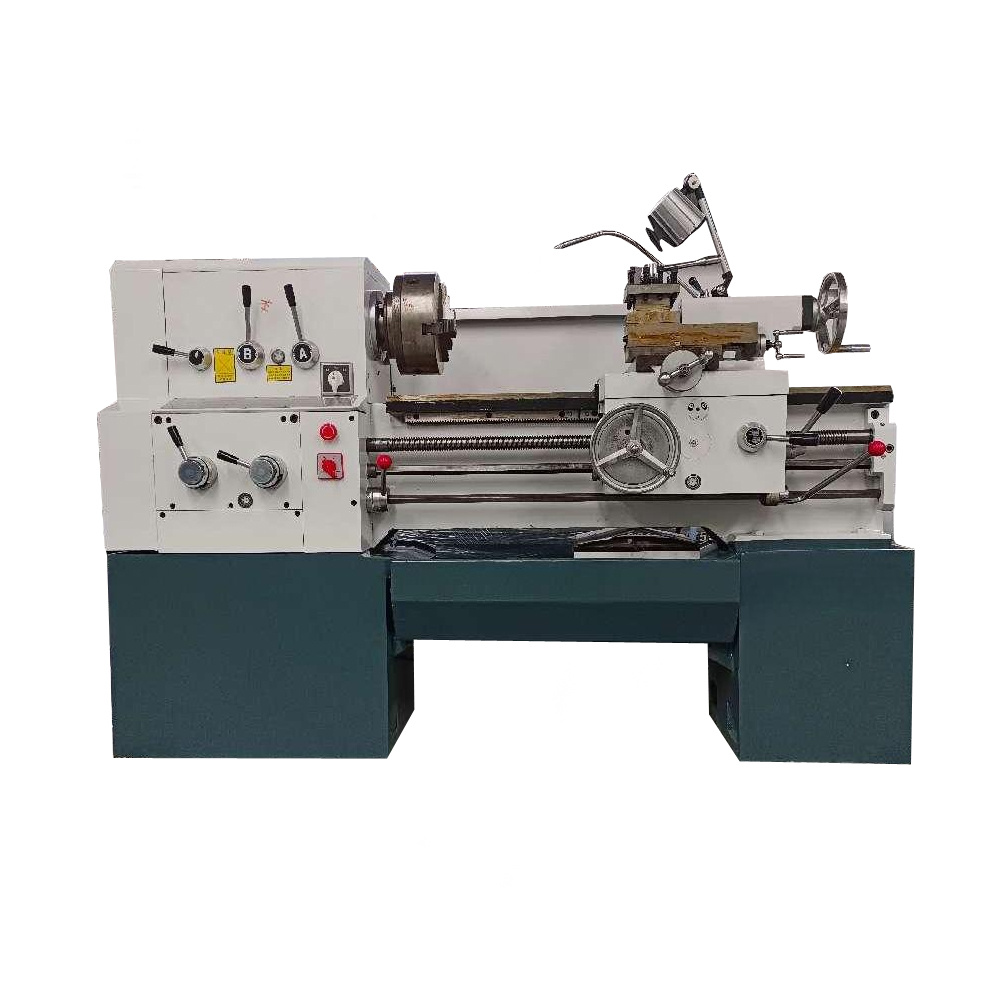

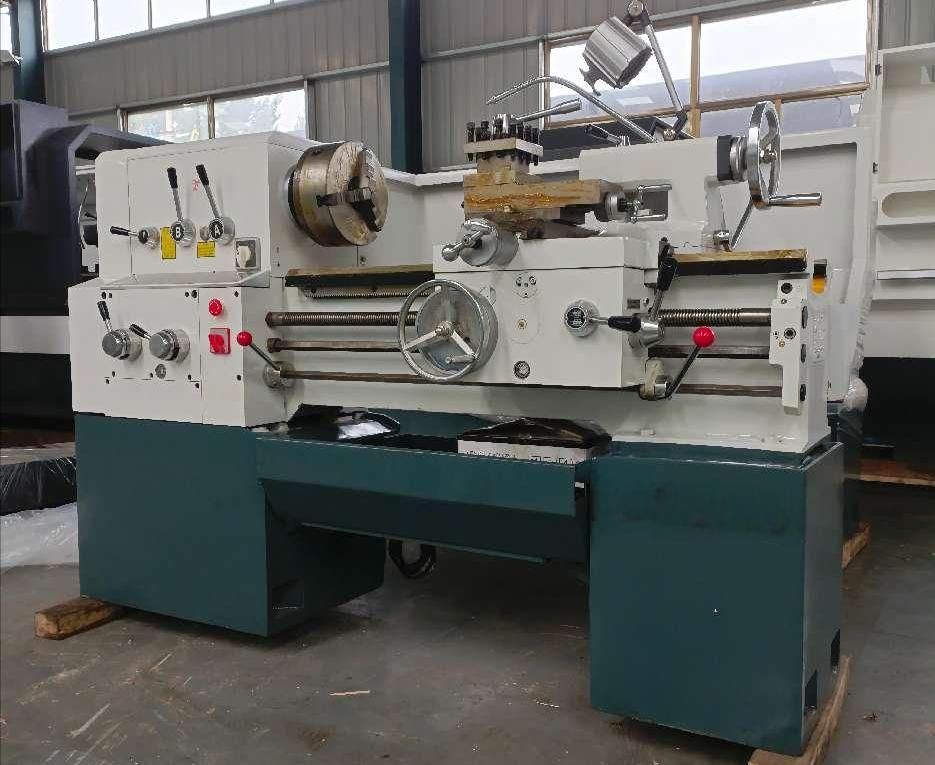

- Commodity name: C6132 horizontal ordinary lathe
1. Machine tool overview:
The C 6132 series ordinary horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning various metric, inch, module and diameter threads, and can perform drilling and oil groove pulling. It is very versatile. Powerful horizontal lathe, widely suitable for batch processing of various shaft and disc parts.
This series of lathes have medium-frequency quenching on the bed guide surface, making them durable and wear-resistant.
The operation of the machine tool is flexible and centralized, and the slide plate is equipped with a quick-moving mechanism. It adopts single-handle visual operation, which is pleasant and user-friendly.
The structural stiffness and transmission stiffness of the machine tool are higher than those of ordinary lathes, and the power utilization rate is high, making it suitable for powerful cutting.
Before leaving the factory, the machine tools are inspected in strict accordance with the inspection procedures and strong cutting tests are conducted to ensure that the machine tools have good accuracy stability and processing reliability.
2. Advantages of machine tools
The joint surfaces of the machine tool headstock, bed , tailstock, and pallet are manually scraped and ground. The entire machine has been strictly inspected to effectively ensure the accuracy and stability of the machine tool.
The machine tool is made of high-strength cast iron, with special copper and chromium materials added. The quenching depth of the bed guide rails reaches 4mm, which effectively improves the wear resistance and stability of the machine tool.
The machine tool spindle uses Wafangdian bearings, and the machine tool gears are precision ground, which effectively improves the gear hardness and reduces machine tool noise.
Type/ Technical parameters
C6132
main data
wing over bed
350mm
wing over carriage
200mm
distance between centers
1000mm
Width of bed
290mm
Spindle
Taper of spindle
M.T.6
Spindle diameter
48mm
step of speed
12 Steps
range of speed
30-1800 rpm
Thread and
feed system
Metric thread
30kinds(0.45~20mm)
Inch thread
35kinds(80-1 3/4T.P.I)
Longitudinal feeds
0.039~1.1mm/r
Cross feeds
0.018~0.55mm/r
Saddle and
carriage
Saddle travel
1000mm
Cross travel
240mm
Compound travel
140mm
Tailstock
Barrel travel
90mm
Barrel diameter
40mm
Taper of center
M.T.4
Power
Motor power
4KW
Coolant motor
0.09KW(0.055HP)
Shipment data
Packing size(LxWxH)
2200×1050×1460(mm)
Main machine(N.W/G.W)
1400/1500(kgs)
