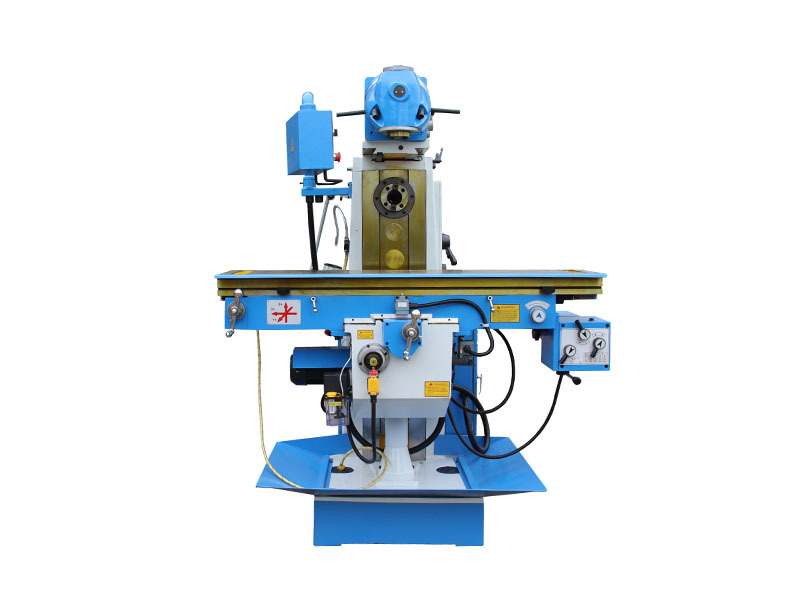

X6436 Universal rotary head milling machine
Keyword:
X6436 Universal rotary head milling machine
Telephone:13793702928
- Product Detail
- Feature
- Accessories
-
- Commodity name: X6436 Universal rotary head milling machine
Machine tool use
A milling machine is a common metal cutting machine tool. The machine tool spindle taper hole is equipped with various cylindrical cutters, forming cutters, end mills, angle milling cutters and other cutting tools directly or through accessories.
Suitable for processing planes, bevels, grooves, holes, machinery manufacturing, molds, equipment, instruments, automobiles, and motorcycle industrial processing equipment of various parts.
Machine parameters
model
X6 4 3 6
working desk size
1500 × 360mm _
Workbench travel (X/Y/Z)
1000 /320/400mm
T-slot
3/1 8/80 mm _ _
Vertical spindle taper
ISO 40
Horizontal spindle taper
ISO 40
Vertical spindle speed series
48-1660 r/mi ( 12stage )
Horizontal spindle speed series 40-1300 r/mi ( 12stage )
Distance from spindle end face to worktable
150-550 mm
The distance from the center of the horizontal spindle to the worktable
0-400mm
Workbench feed speed
22-555mm/min ( 8stage )
Z:Electric
Workbench lifting speed
590mm /min
Rotation angle
360 °
main motor power
4KW _ _
Feed motor power
1.1kw
weight
2580
size
2550 × 2050 × 2050
-
机床特点
1、铣头可360度旋转；
2.工作台可垂直、水平手动送料和垂直升降，垂直和水平同时实现电动快进、电动送料和竖直电动升降；
3、表X、Y、Z三个方向电动进给X到行程1000/320/400毫米行程长度，稳定性更大；
4、主传动与进给变速机构12个不同转速，调速范围广；
5、主轴轴承圆锥滚子轴承，承载能力高，动态制动带制动力矩，停车快，制动可靠；
6.矩形轨道稳定性好；
7.工作台和轨道超声波淬火强度更高。
-
序号
名称
数量
1
X向电子走刀器
1
2
数显
1
3
平口钳
1
4
铣夹头
1
5
组合压板
1
6
工具箱
1
7
拉杆
1
8
升降曲柄
1
9
手轮
1
10
进刀手柄
1
11
梅花扳手
1
12
开口扳手
1
13
说明书
1
14
塑料油壶
1
15
一字螺丝刀
1
16
十字螺丝刀
1
17
内六角扳手
1
Product Video
FAQ
Who are we?
We are located in Shandong, China and have been selling to the domestic market since 2014 (70.00%), Northern Europe (10.00%), Eastern Europe (10.00%), Africa (5.00%), the Middle East (3.00%), and South America (2.00%). Our office has a total of 51 to 100 people.
How do we ensure quality?
Always provide pre production samples before mass production; Always conduct final inspection before shipment;
What can you buy from us?
CNC turning and milling compound lathe, CNC lathe, CNC vertical machining center, CNC vertical milling machine, CNC vertical lathe, gantry machining center.
Why should you purchase from us instead of other suppliers?
We specialize in manufacturing these products for 20 years and have obtained ISO 9001 certification; Ce certification; EAC certification.
Do you have a physical factory?
Yes, we are a CNC lathe manufacturer from Tengzhou City, Shandong Province. We have a professional technical team, sales team, and after-sales team.
Can you customize the machine?
Yes, we integrate design and development together, with experienced engineers and assembly technicians.
What services can we provide?
Accept delivery terms: FOB, CFR, CIF, EXW; Accepting payment currency: USD, CNY; Accepting payment types: T/T, L/C, Western Union remittance; Language: English, Chinese
May I visit your factory?
Okay, we warmly welcome you.
