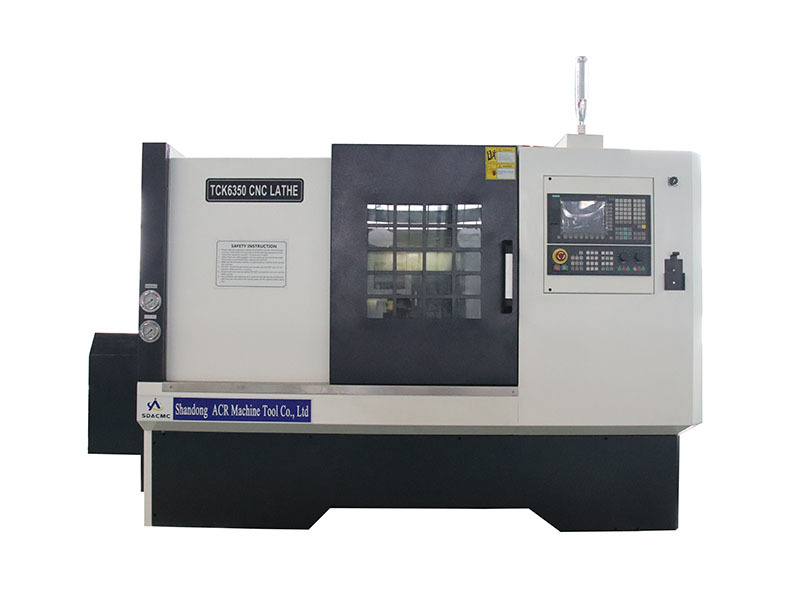

- Commodity name: TCK6350 inclined bed CNC lathe
1. Main structural features of machine tools:
This machine tool is a high-speed, high-precision and high-reliability inclined bed machine tool. The main components such as the bed base, bed bed, and headboard are all cast from high-strength materials to ensure the stability of the machine tool for long-term use.
Adopting a 45° overall inclined bed structure and equipped with high-precision preloaded Taiwan linear rolling guides, the machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.

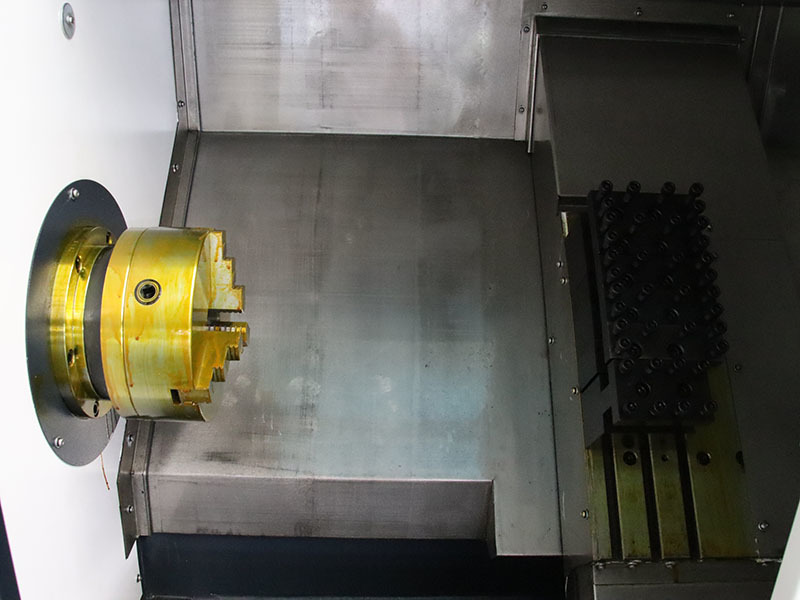

High-speed, high-precision and high-rigidity cartridge-type spindle unit and servo spindle motor can achieve higher spindle speeds. The spindle unit is assembled in a constant temperature room. After assembly, it undergoes constant temperature running-in for 72 hours. After being put on the machine, it undergoes a continuous 72-hour test run to ensure the reliability of high-speed and high-precision performance.

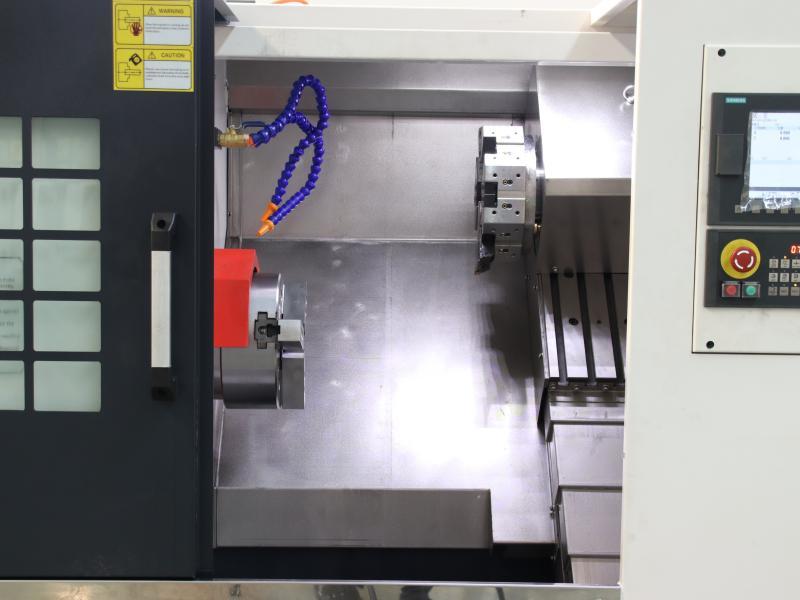

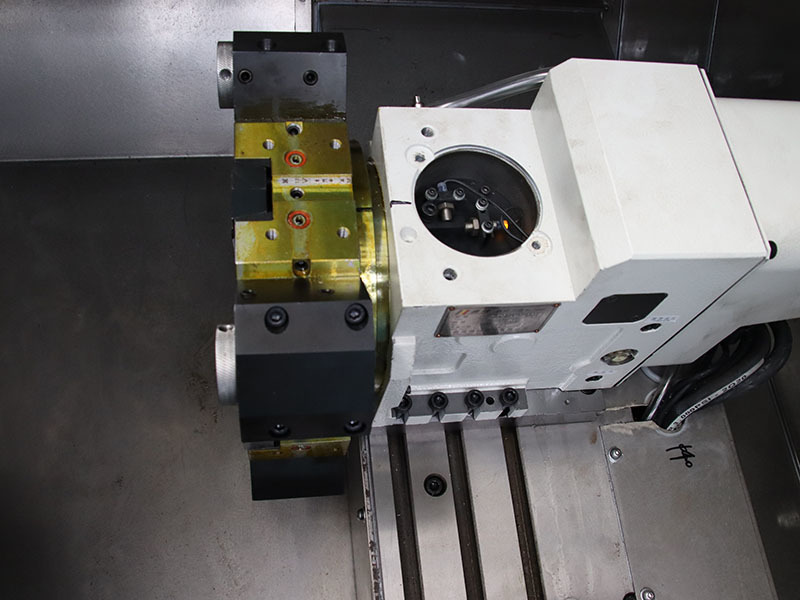

Using the tool arrangement method, the tool changing speed is fast and the positioning accuracy is high.
The X/Z-direction servo motor is directly connected to the screw through a high-torque, low-inertia elastic coupling. The screw support adopts a pre-stretched structure, which can eliminate transmission backlash and pre-compensate for the impact of thermal deformation on accuracy during long-term operation of the machine tool. Ensure positioning accuracy and repeated positioning accuracy; adopt advanced centralized automatic lubrication device, regular and quantitative automatic intermittent lubrication, and work stably and reliably.
The machine tool adopts Guangshu 980TDC system, which is more convenient to use.

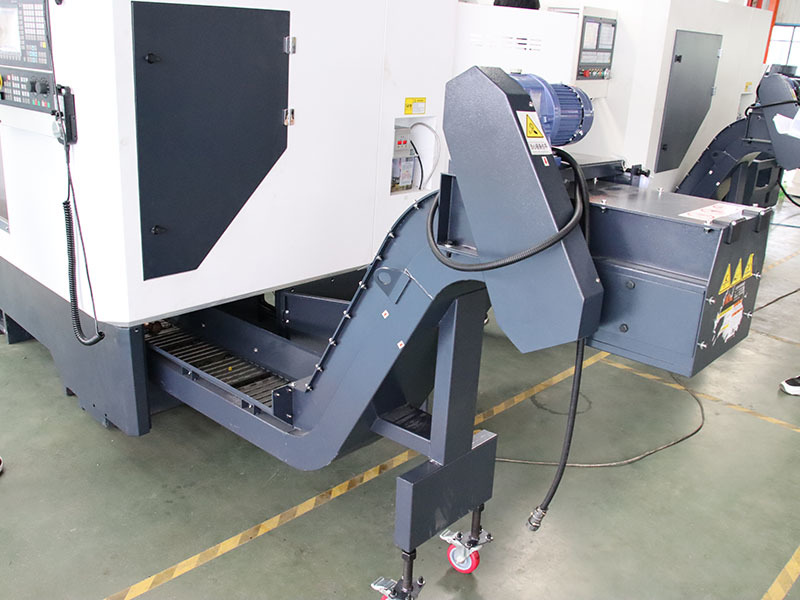

The machine tool protection adopts a full protection design, which is highly pleasant, unique in appearance, reliable in waterproofing and chip prevention, and easy to maintain.
2. Main technical parametersMachine model
unit
TCK6350
Maximum rotation diameter of the bed
mm
Φ520
Maximum rotation diameter of cross slide
mm
Φ220
Maximum processing length
mm
410 (with row of knives) 330 (with turret)
Standard chuck specifications
inch
12″
X-axis maximum travel
mm
500
Z-axis maximum travel
mm
500
Spindle maximum speed
rpm
3000rpm
Spindle speed change
Infinitely variable speed
Spindle end code
A2-8
Spindle through hole diameter
mm
Φ 66
Spindle tube inner diameter
mm
Φ 55
Rapid traverse speed
m/min
X:18 Z:18
cutting feed rate
mm/min
1-15000
X/Z direction motor torque
NM
7.5/7.5 (X direction with brake)
Spindle motor power
KW
11
Toolbar section
mm
25×25
Knife holder
4
Total power capacity
KVA
twenty two
Cutting water tank capacity
L
90
Overall dimensions (length × width × height)
mm
2500×1620×1890
Total Weight
KG
2900
3. Main configuration list
name
Specifications and models
quantity
brand
Origin
Control System
980TDC
1 set
Guangshu
Domestic
Spindle unit
Φ 2 00
1 set
Heiner
Domestic
Screw bearing
1 set
Xinha
Domestic
Dota
4 workstations
1 set
Yaxing
Domestic
Spindle motors and drives
Servo main motor ( 11KW )
1 set
Guangshu
Domestic
guide
Linear Guides
1 set
Intime
Taiwan
ball screw
3210-03
1 set
Northern Qishan
Domestic
Automatic lubrication device
HR-3
1 set
Hurun
Domestic
hydraulic station
1 set
blessed
Nanjing
Hydraulic chuck
Hollow 12 〃
1 set
Three six
Domestic
cooling pump
1 set
Domestic
