- Commodity name: TCK6340 inclined bed CNC lathe

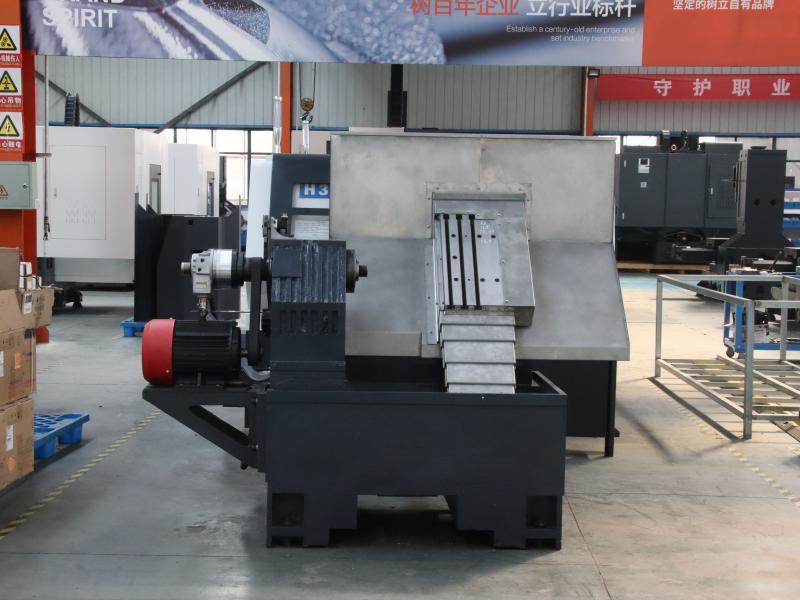

1. Main structural features of machine tools:
This machine tool is a high-speed, high-precision and high-reliability inclined bed machine tool. The main components such as the bed base, bed bed, and headboard are all cast from high-strength materials to ensure the stability of the machine tool for long-term use.
Adopting a 45° overall inclined bed structure and equipped with high-precision preloaded Taiwan linear rolling guides, the machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
High-speed, high-precision and high-rigidity cartridge-type spindle unit and servo spindle motor can achieve higher spindle speeds. The spindle unit is assembled in a constant temperature room. After assembly, it undergoes constant temperature running-in for 72 hours. After being put on the machine, it undergoes a continuous 72-hour test run to ensure the reliability of high-speed and high-precision performance.
The tool changing speed is fast and the positioning accuracy is high.
The X and Z direction feeds use servo motors directly connected to the lead screw through high-torque and low-inertia elastic couplings to ensure positioning accuracy and repeatable positioning accuracy; an advanced centralized automatic lubrication device is used to perform regular and quantitative automatic intermittent lubrication. Stable and reliable.
The machine tool protection adopts a full protection design, which is highly user-friendly, reliable in waterproofing and chip prevention, and easy to maintain.2. Main technical parameters
Machine model
unit
TCK6340
Maximum rotation diameter of the bed
mm
Φ400
Maximum rotation diameter of cross slide
mm
Φ140
Maximum processing length
mm
500

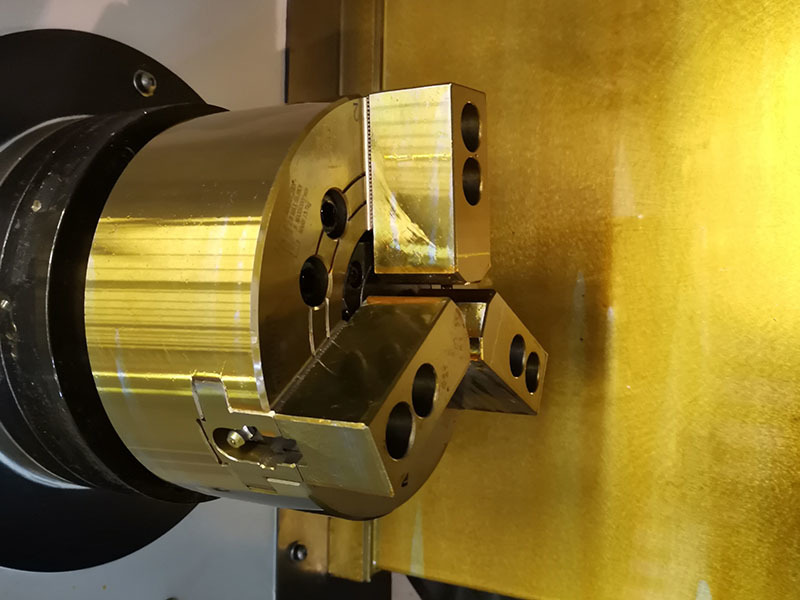

Standard chuck specifications
inch
6″ chuck
X-axis maximum travel
mm
500
Z-axis maximum travel
mm
500
Spindle maximum speed
rpm
3500rpm
Spindle speed change
Infinitely variable speed
Spindle unit
mm
Φ1 4 0
Spindle end code
A2-5
Spindle through hole diameter
mm
Φ56
Spindle tube inner diameter
mm
Φ45
Rapid traverse speed
m/min
X:18 Z:18
cutting feed rate
mm/min
1-15000
X/Z direction motor torque
NM
6/6 (X direction with brake)
Spindle motor power
KW
5.5 Servo
Toolbar section
mm
20×20

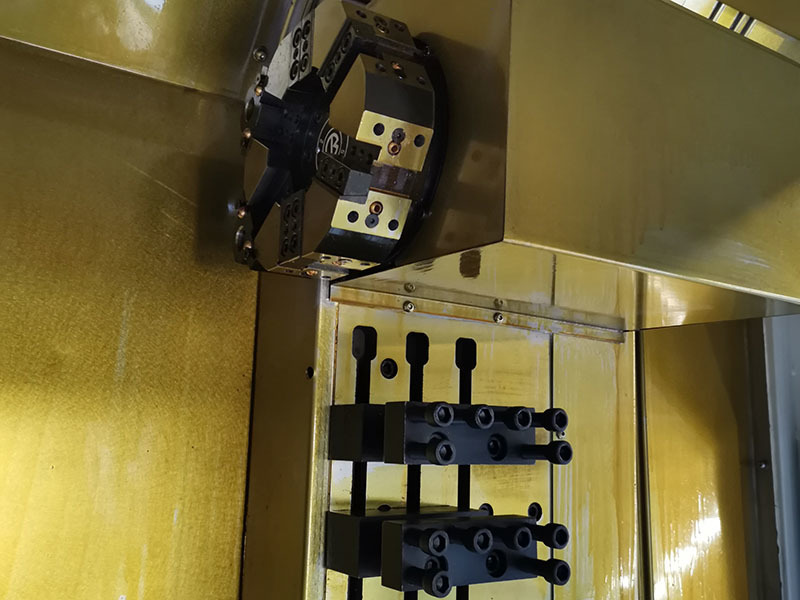

Knife holder
row of knives
X/Z bidirectional positioning accuracy
mm
0.016/0.016
Repeatable positioning accuracy in X/Z direction
mm
±0.003/±0.003
Total power capacity
KVA
11
Cutting water tank capacity
L
90
Overall dimensions (length × width × height)
mm
2500×1340×1710
Total Weight
KG
2500
3. Main configuration list
Name
Specifications and models
quantity
brand
Origin
Control System
Guangshu
1 set
Domestic
Spindle unit
φ 1 4 0
1 set
Domestic
Screw bearing
Xinha
Domestic
Tool holder
1 set
self made
Domestic
Spindle motors and drives
Servo main motor ( 5.5 KW )
1 set
Domestic
guide
Linear Guides
1 set
Intime
Taiwan
ball screw
1 set
Northern Qishan
Domestic
Automatic lubrication device
1 set
Domestic
hydraulic station
1 set
Elit
Nanjing
Hydraulic cylinder
Hollow 6 〃
1 set
Domestic
cooling pump
1 set
Domestic
