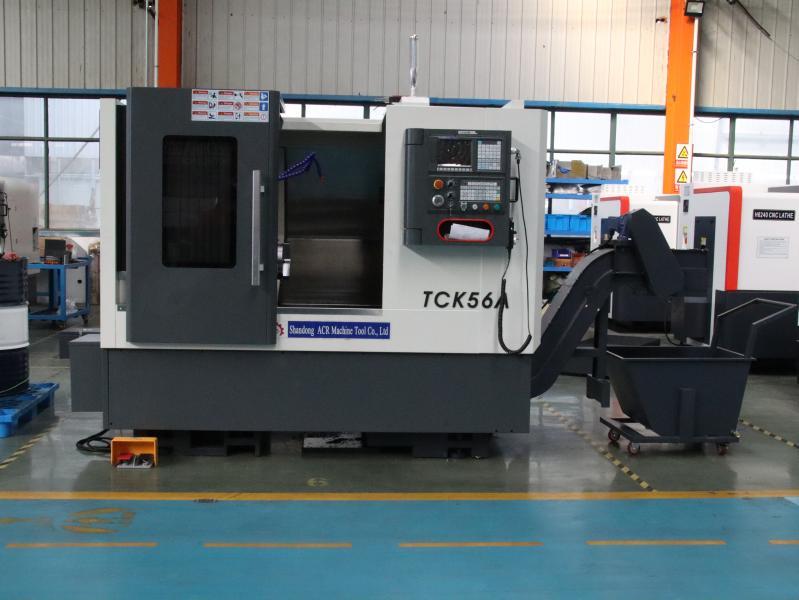

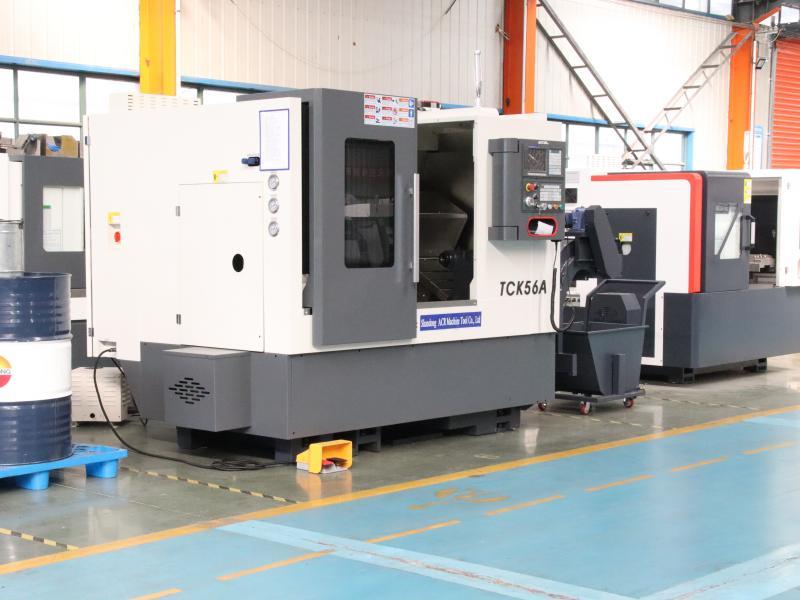

- Commodity name: TCK56A/1000 inclined bed CNC lathe
1 Structural characteristics and functional requirements of machine tools
1.1 This series of machine tools is a mature product mainly exported by Shandong Ekerui Machine Tool Co., Ltd. It has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
1.2 High-speed, high-precision and high-rigidity cartridge spindle unit and servo spindle motor can achieve higher spindle speeds. It is suitable for turning disc and shaft parts. It can process straight lines, arcs, metric and inch threads, and multi-start threads. It is also suitable for turning disc and shaft parts with complex shapes and high precision requirements.

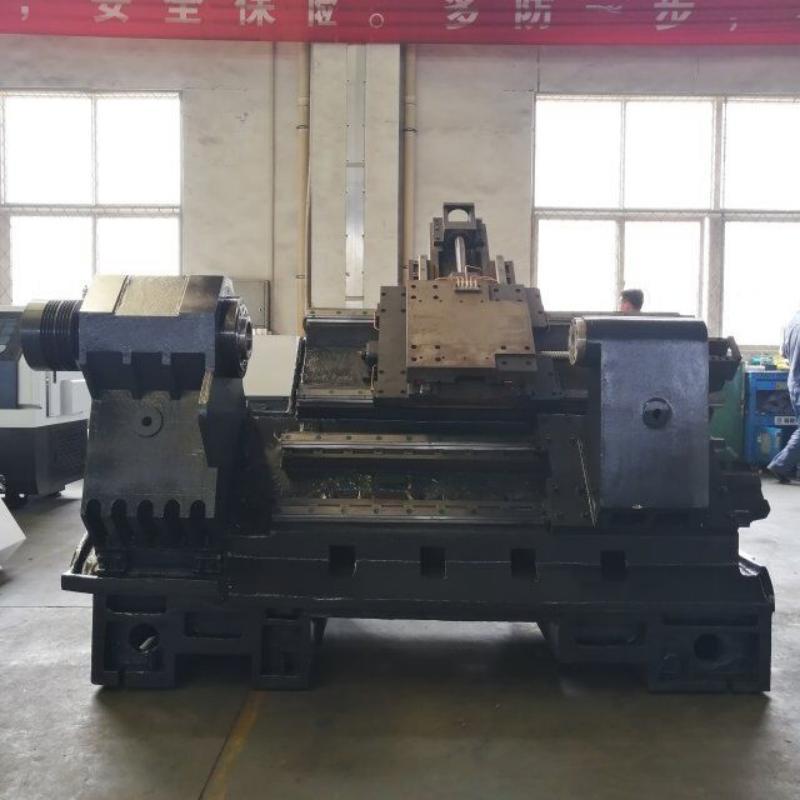

1.3 It adopts a 45° overall inclined bed structure and is equipped with high-precision preloaded Taiwan linear rolling guides. The machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
1.4 The CNC system adopts FANUC 0i - TF system, using domestic famous ball screws and high-precision screw bearings.
1.5 The spindle adopts a high-precision spindle bearing set and has been precision assembled and dynamically balanced tested to ensure high spindle accuracy, low noise and strong rigidity.
1.6 Each lubrication point uses a forced automatic lubrication device to lubricate the screw and guide rail at fixed points and quantitatively . When there is an abnormal state or insufficient oil, a warning signal is automatically generated.

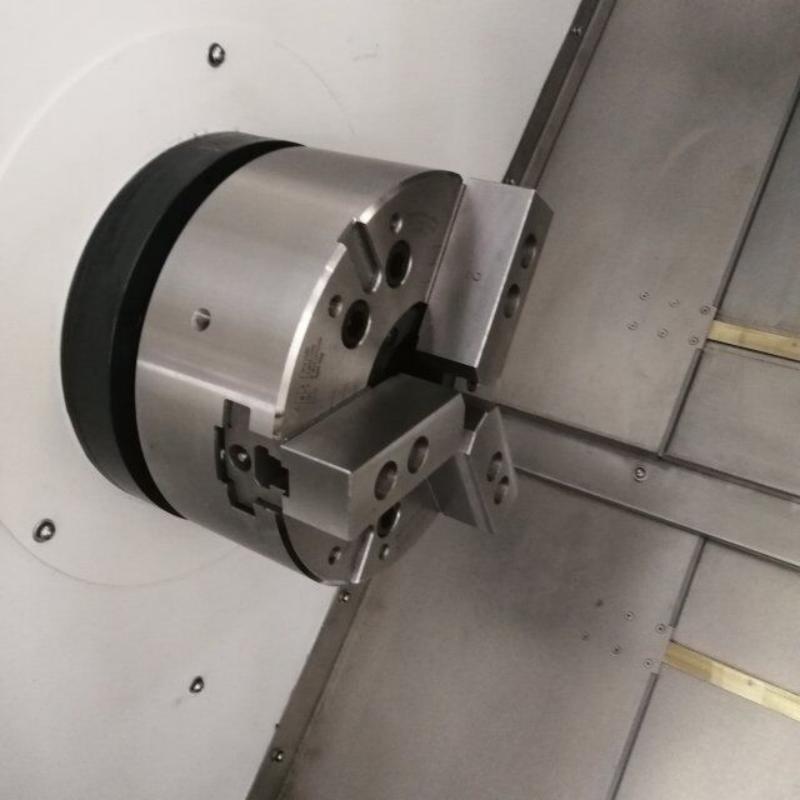

The 1.7 comes standard with a domestic three-jaw self-centering hydraulic chuck.
1.8 The guide rail is equipped with a stainless steel protective device to prevent the guide rail from being corroded by iron filings and coolant, and facilitates the cleaning of iron filings.
2. Main technical parameters of the machine tool:
project
unit
Specification
Remark
Maximum rotation diameter of the bed
mm
Φ 560
Maximum cutting length
mm
1000
Maximum cutting diameter
mm
Disc type Φ 400 Shaft type Φ 350
Maximum rotation diameter on the skateboard
mm
Φ 350
Spindle end type and code
A2-6 _
Front taper hole 1:20
Spindle hole diameter
mm
Φ 65
Maximum bar diameter
mm
Φ 50
Hollow chuck available
single spindle Headstock
Spindle speed range
r/min/Nm
50～ 3500 _
hypersync
Main motor Output Power
30 minutes / continuous
kW
11
Standard chuck
Chuck diameter
inch
8² _
X- axis rapid movement speed
m/min
30
Rolling guide
Z- axis rapid movement speed
m/min
30
Rolling guide
X- axis travel
mm
210
Z- axis travel
mm
1050
Tailstock travel
mm
900
Cylinder drive line rail
Tailstock spindle taper hole taper
Mohs
Mo 5
Standard tool holder form
Horizontal 8-station
Tool size
External round knife
mm
2 5 × 2 5
Boring bar diameter
mm
Ф40/Ф32/Ф25/Ф20
Is it possible to choose the knife from the knife disc nearby?
yes
Machine weight
total weight
kg
4 8 00
weight capacity
disk type parts
kg
200 (including chuck and other machine tool accessories)
Shaft parts
kg
5 00 (including chuck and other machine tool accessories)
Machine tool appearance
Length ×width×height
mm
3570×2000×1900
Does not include chip conveyor
3. Standard configuration of machine tools and main purchased parts:
Accessory kit name
Specifications and models
Manufacturer
Remark
CNC system
FANUC 0i - TF
FANUC
Japan
Main motor
11KW
hypersync
Beijing
X- axis motor
( with brake )
βiSc12/3000 -B (with brake)
FANUC
Japan
Z- axis motor
β iSc12/3000 -B
FANUC
Japan
Spindle bearings
90X140X37
import
NSK/NTN (Japan)
100X150X37
100X150X45
X-axis ball screw
φ32×12-635
Nanjing Craftsmanship
Nanjing (optional silver)
Z-axis ball screw
φ32×12-1542
Nanjing Craftsmanship
Nanjing (optional silver)
X-axis guide rail
35 specifications
import
HIWIN (Taiwan)
Z-axis guide rail
35 specifications
import
HIWIN (Taiwan)
Tailstock guide
35 specifications
import
HIWIN (Taiwan)
X-axis screw bearing
25X62X15 _
import
NSK/NTN (Japan)
Z-axis screw bearing
25X62X15 _
import
NSK/NTN (Japan)
Hydraulic chuck
8 inches hollow
KPT
tailstock
Hydraulic tailstock
self made
Optional servo programmable tailstock
Tailstock thimble
MT5
Knife holder
Horizontal 8-station hydraulic tool holder
Sanhe
Little King Kong (optional Taiwan SWIFT)
Cooling chip removal device
Chain plate chip conveyor
Domestic
Optional
