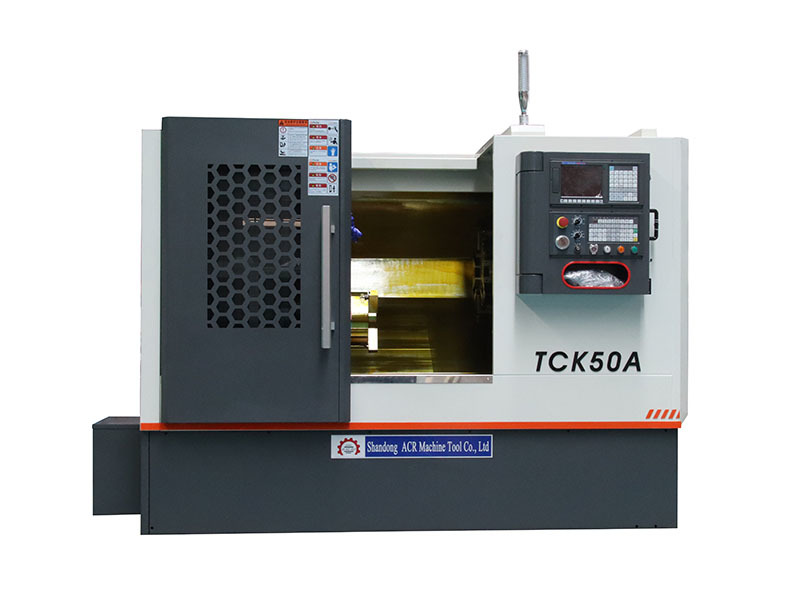

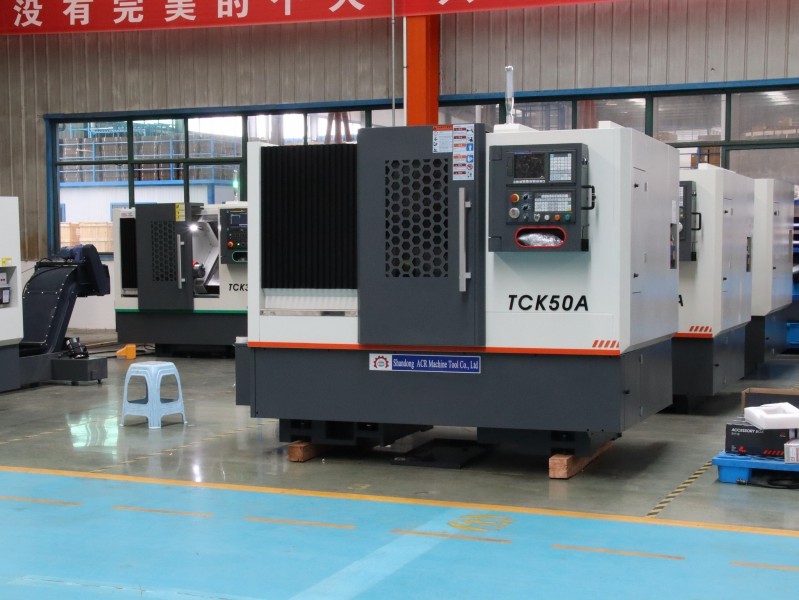

TCK50A/1500 inclined bed CNC lathe

This machine tool is a new product designed by the company in 2023. The whole machine has a compact structure, beautiful and pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.

Category:

CNC lathe with inclined bed body

Keyword:

Email: acrcnc@acrtool.com

Telephone:13793702928

MESSAGE

Product Detail
Feature
Accessories

Commodity name: TCK50A/1500 inclined bed CNC lathe

1 Main structural features of machine tools:

1.1 This machine tool is a new product designed by the company in 2023. The whole machine has a compact structure, beautiful and pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.

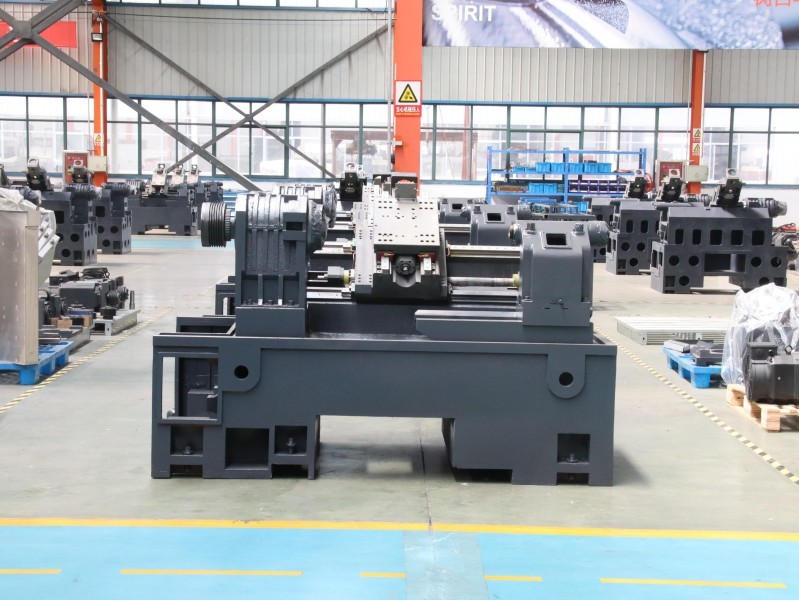

1.2 It adopts a 45° overall inclined bed structure. Both the Z/X direction and the tailstock are equipped with high-precision preloaded Taiwan linear roller guides. The tailstock adopts servo drive and hydraulic locking, and the tailstock sleeve hydraulically tightens the workpiece. The machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.

1.3 The spindle adopts a high-precision spindle bearing set and has been precision assembled and dynamically balanced tested to ensure high spindle accuracy, low noise and strong rigidity.

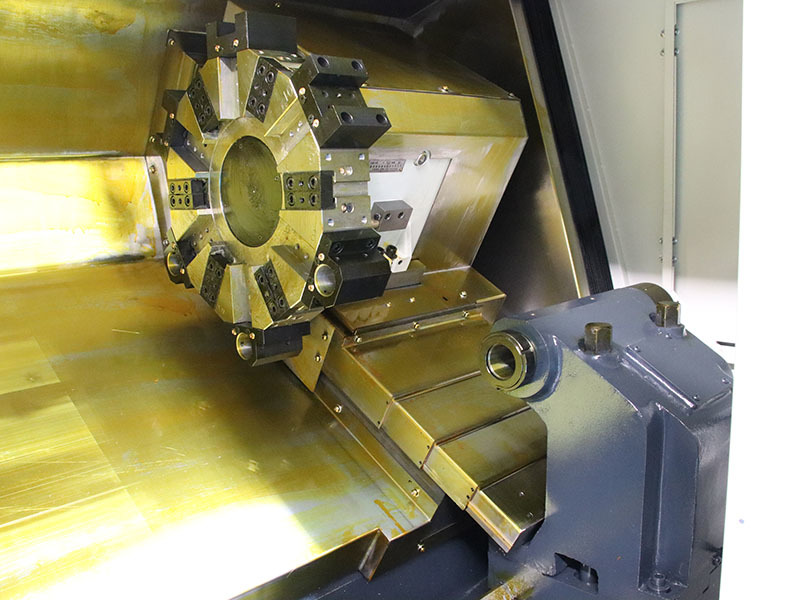

1.4 Using the tool turret method, the tool changing speed is fast and the positioning accuracy is high.

1.5 The X and Z direction feeds use servo motors directly connected to the screw through high-torque and low-inertia elastic couplings to ensure positioning accuracy and repeatable positioning accuracy.

1.6 Adopt advanced centralized automatic lubrication device, regular and quantitative automatic intermittent lubrication, and work stably and reliably.

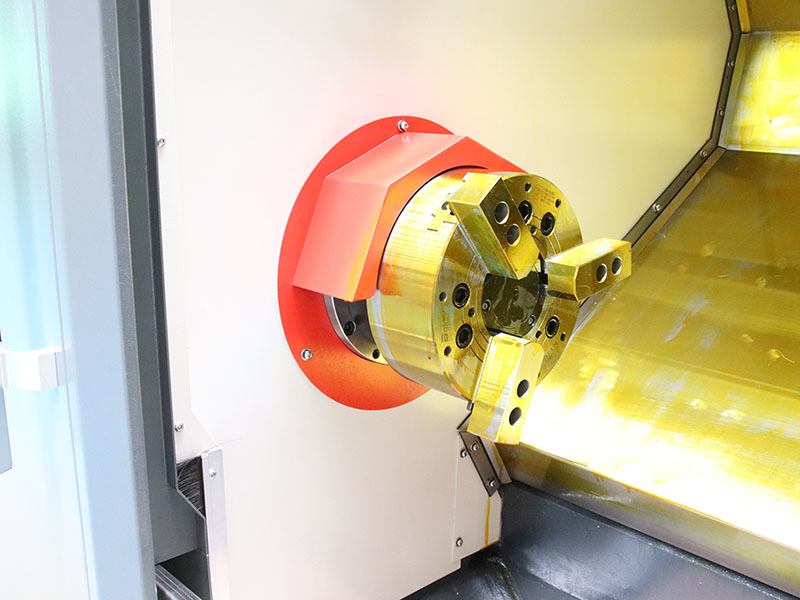

1.7 Use domestic hydraulic chuck.

1.8 The tailstock is driven by a servo, the linear rail clamp is hydraulically locked, and the hydraulic sleeve is used to tighten the workpiece for processing.

2 Main technical parameters, main configurations and accuracy indicators

serial number	Machine model	unit	TCK50Ax1500
1	Maximum rotation diameter of the bed	mm	Φ560
2	Maximum rotation diameter of cross slide	mm	Φ260
3	Maximum processing length	mm	1500
4	Maximum processing diameter (disc type)	mm	Φ440
5	Standard chuck specifications	inch	10 inches
6	X-axis maximum travel	mm	260
7	Z-axis maximum travel	mm	1600
8	Spindle maximum speed	rpm	3000rpm
9	Spindle speed change		Infinitely variable speed
10	Spindle end code		A2-8
11	Spindle through hole	mm	Φ86
12	Draw tube through hole	mm	Φ75
13	Rapid traverse speed	m/min	X:18 Z:18
14	cutting feed rate	mm/min	1-15000
15	X/Z direction motor torque	NM	10/15 (X direction with brake)
16	Spindle motor power	KW	15
17	Horizontal turret station		8
18	Turning tool body size	mm	25´25 _ _
19	Maximum boring tool diameter	mm	Æ 40
20	Sleeve diameter	mm	90
twenty one	Sleeve stroke	mm	80
twenty two	Tailstock sleeve tapered hole		Mohs 5#
twenty three	Maximum travel of tailstock	mm	1400
twenty four	Total power capacity	KVA	twenty two
25	Cutting water tank capacity	L	90
26	Overall dimensions (length × width × height)	mm	400020002000
27	Total Weight	KG	5000

Main accuracy indicators of machine tools

Test items		Standard tolerance ( mm)
Periodic axial movement of the spindle		0.005
Radial runout of spindle chuck positioning cone surface		0.005
Position accuracy	Repeat positioning accuracy A	X: ±0.003 Z: ±0.003
Diameter consistency		0.01/150
Flatness		0.02/φ200
Thread pitch product error		0.010/50
Surface roughness		Ra1.6μm

Main configuration list

name	Specifications and models	quantity	brand	Origin
Control System	GSK988T	1 set	Guangshu	Domestic
Spindle unit	Φ 230	1 set	Heiner	Domestic
X- direction screw bearing	25TAC62	2 sets	NSK	Japan
Z- direction screw bearing	40TAC72	5 sets	NSK	Japan
Servo turret	TCS-100-8T	1 set	Chengxin	Taiwan
Spindle motors and drives	Servo main motor ( 15 KW )	1 set	hypersync	Domestic
X/Z roller guide	45/45	2 sets each	Yintai / Shanghai Yin	Taiwan
Tailstock roller guide	45	2 sets	Yintai / Shanghai Yin	Taiwan
X/Z ball screw	3210/5010	1 set each	Yintai / Shanghai Yin	Taiwan
Tailstock ball screw	4010	1 set	Qishan	Domestic
Automatic lubrication device	RBCLB-3 ZK	1 set	He Jin	Domestic
hydraulic station	1.5kw	1 set	blessed	Domestic
Hydraulic chuck cylinder	10 inches	1 set	Bedford	Domestic
cooling pump	180W	1 set	Jianyang	Domestic
Hydraulic tail top	Φ 90X80	1 set	Pruitt	Domestic
Hydraulic center stand	K11120X20AⅡ	1 set	global	Domestic (optional)
