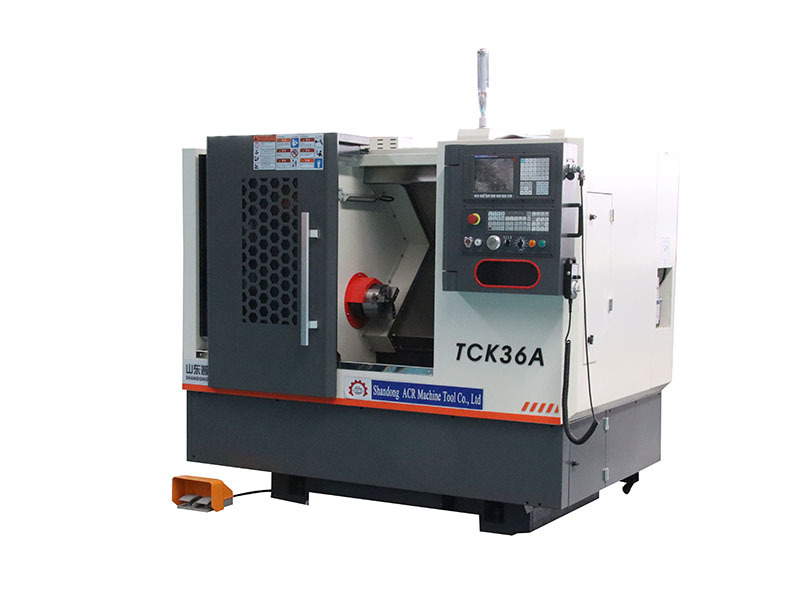

- Commodity name: TCK36A Line Rail Oblique Bed CNC Lathe
1. Main structural features of machine tools:
This machine tool is a high-speed, high-precision and high-reliability inclined bed machine tool. The main components such as the bed base, bed bed, and headboard are all cast from high-strength materials to ensure the stability of the machine tool for long-term use.
Adopting a 45° overall inclined bed structure and equipped with high-precision preloaded Taiwan linear rolling guides, the machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
High-speed, high-precision and high-rigidity cartridge-type spindle unit and servo spindle motor can achieve higher spindle speeds. The spindle unit is assembled in a constant temperature room. After assembly, it undergoes constant temperature running-in for 72 hours. After being put on the machine, it undergoes a continuous 72-hour test run to ensure the reliability of high-speed and high-precision performance.
Using the tool arrangement method, the tool changing speed is fast and the positioning accuracy is high.
The X and Z direction feeds use servo motors directly connected to the screw through high-torque and low-inertia elastic couplings. The screw support adopts a pre-stretched structure, which can eliminate transmission backlash and pre-compensate for the thermal deformation of the machine tool during long-term operation. influence to ensure positioning accuracy and repeated positioning accuracy; it adopts advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, and the work is stable and reliable.
The machine tool protection adopts a full protection design, which is highly pleasant, unique in appearance, reliable in waterproofing and chip prevention, and easy to maintain.2. Main technical parameters
part
project
T K 3 6 A
The main parameters
Maximum upper turning diameter of bed surface
Φ 3 60mm
Spindle and chuck parameters
Maximum processing diameter on tool holder
Φ 1 70mm
Maximum processing length
300mm _
Spindle head form
A2-5
Clamping form
Hydraulic chuck
Feed part parameters
Spindle motor power ( KW )
3.7 _
Spindle maximum speed
4000rpm _
Appearance
Spindle through hole diameter
Φ 48 mm
X-axis limit travel
3 10mm
X-axis motor torque
6 N.M.
X/Z axis rail specifications
30/30
Z axis limit travel
3 50mm
Z-axis motor torque
6NM _
X, Z axis connection method
Direct
Bed form and slope
Overall dimensions (length × width × height)
2 15 0× 1 5 0 0× 1 7 5 0
weight
Weight (approximately)
2 6 00 kg
3. Main configuration list
name
Specifications and models
quantity
brand
Origin
Control System
980TC3
1 set
Guangshu
Guangzhou
Spindle unit
φ 140
1 set
Domestic
Special bearings for lead screw
1 set
Ha axis
Domestic
Spindle motor
3.7 KW servo
1 set
Guangshu
Guangzhou
Rail type
Linear roller guide
1 set
Yintai / Shanghai Yin
Taiwan
ball screw
3210
1 set
Qishan
Domestic

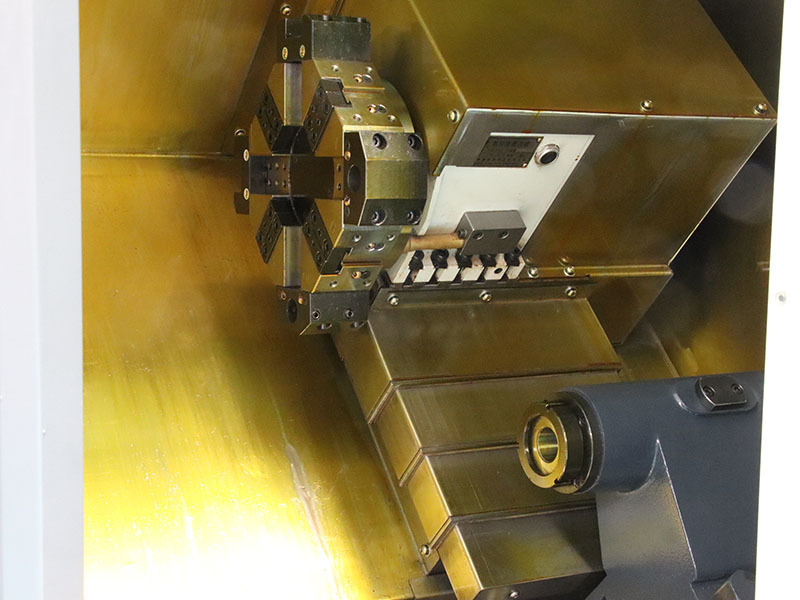

Hydraulic tool holder type
8- station horizontal turret
1 set
Yaxing
Domestic
Automatic lubrication device
HR-3
1 set
Hurun
Domestic

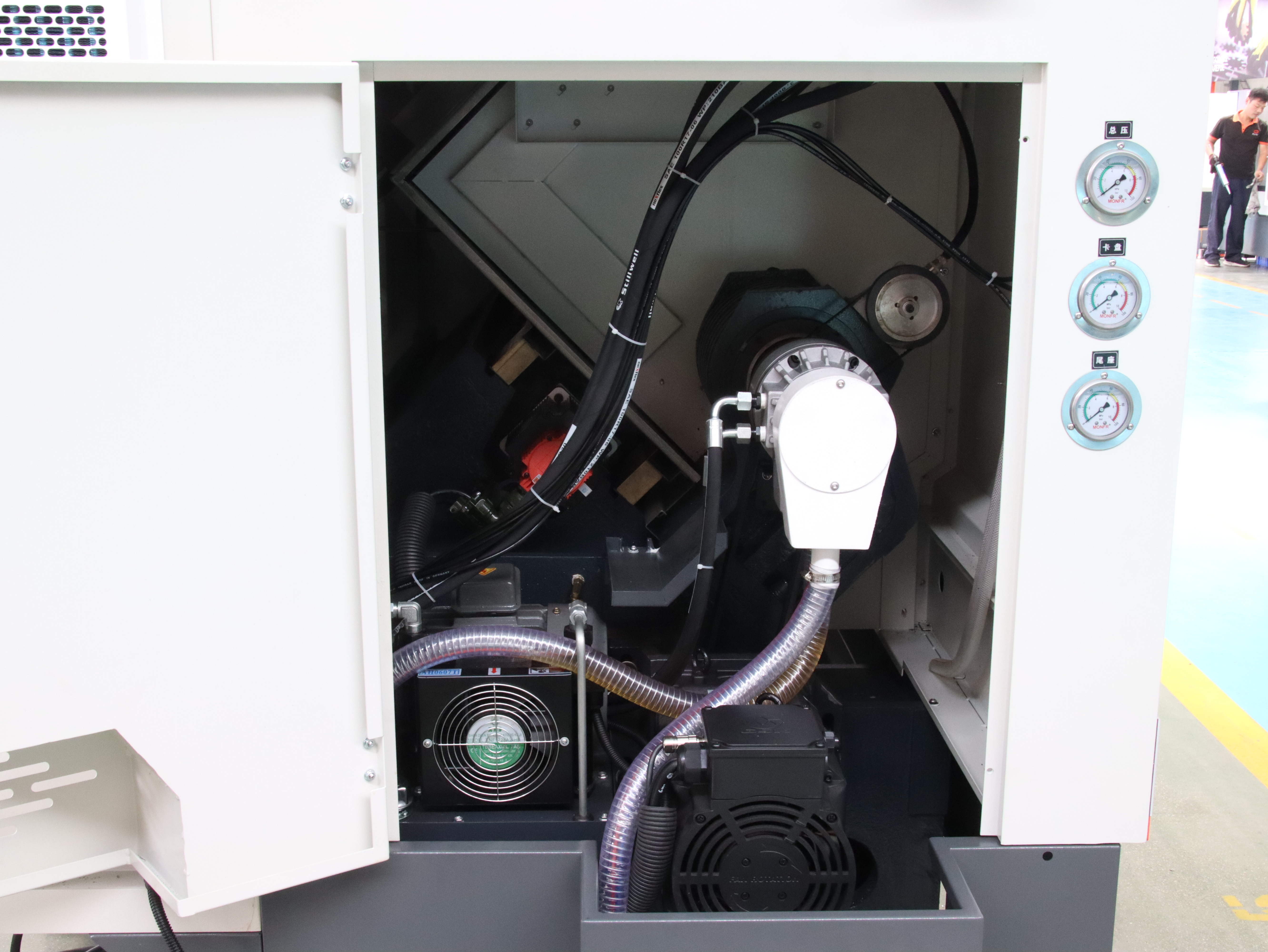

hydraulic station
0.75kW/40L
1 set
Domestic
Hydraulic cylinder
Hollow 6 〃
1 set
Bedford
Changzhou

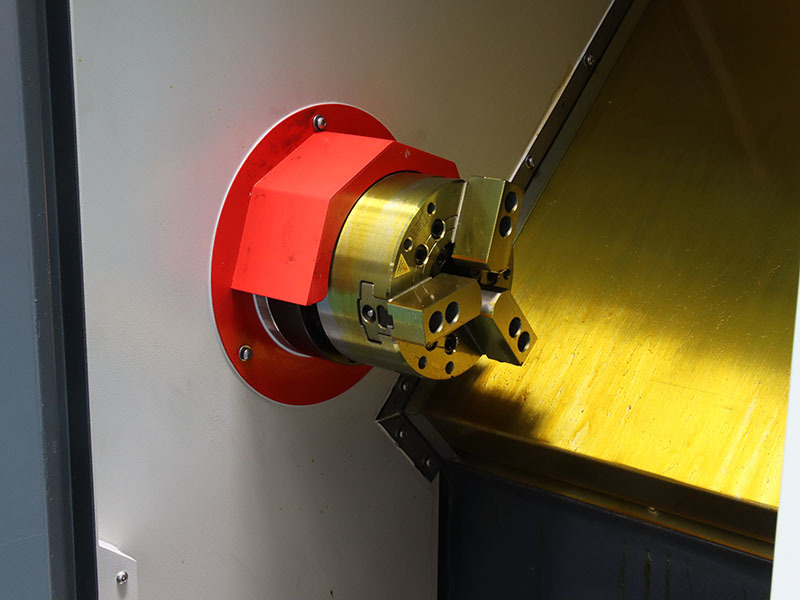

Hydraulic chuck
Hollow 6 〃
1 set
Bedford
Changzhou
cooling pump
DB-12
1 set
Zhejiang
Domestic
