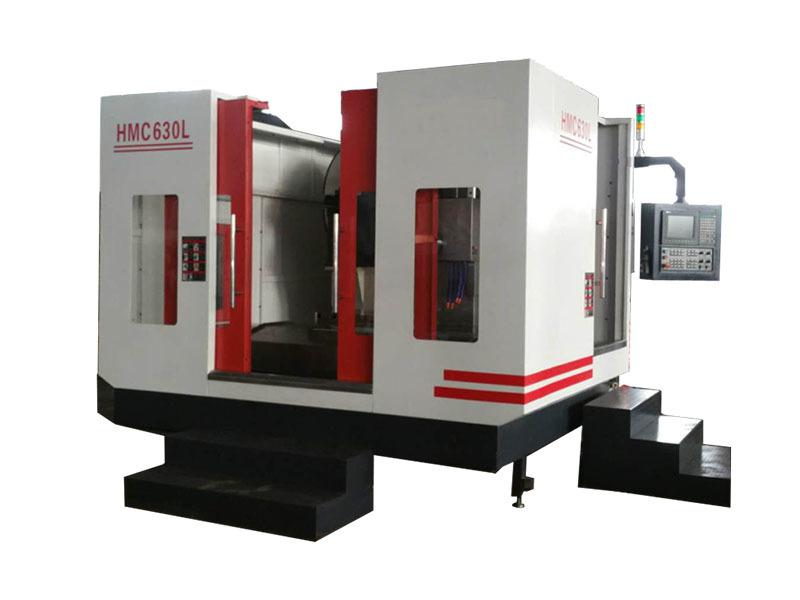

HMC630L horizontal machining center
Category:
Keyword:
HMC630L horizontal machining center
Telephone:13793702928
- Product Detail
- Feature
- Accessories
-
- Commodity name: HMC630L horizontal machining center
one. The main technical parameters
Mobile itinerary
Left and right stroke ( X) mm
1000
Front and rear travel ( Y) mm
900
Up and down stroke ( Z) mm
800
2. Workbench specifications
Workbench surface size mm
630*630
Workbench load capacity Kg
1200
5. Spindle taper hole ( model / sleeve diameter mm)
BT 5 0/Φ1 90
Remark:
The Taiwan-made high-speed synchronous toothed belt drives the spindle, with the spindle speed up to 6,000 rpm and the overall reinforced specially designed bed structure, which is particularly suitable for special processing requirements of high strength, high efficiency, and high-quality surface finish .
6. Spindle speed ( RPM revolutions/minute )
6 000
7. Recommended motor parameters
( Main motor / Kw , A. X , Y , Z axis /Kw )
Spindle β 11/15Kw;
X-axis β18/ 2.0 Kw;
Y axis β22/ 2.5Kw;
Z axis β22/ 2.5Kw; A rotation axis β18/ 2.0 Kw;
8. Ball screw
X Y Z axis ball screw specifications mm
4012 5 012
The three axes adopt Taiwan's C3 grade high-amplitude and precision pre-tensioned ball screws.
9. Connection (transmission) method
XYZ motor connection method
Direct connection (transmission)
Spindle connection method
Belt (drive)
10. Feed speed G00 , G01 (rate)
G00 rapid feed mm/min
Rapid federate
X- axis rapid feed mm/min
30 m/min
Y- axis rapid feed mm/min
24 m/min
Z- axis rapid feed mm/min
30 m/min
11.Roller wire gauge
X-direction roller wire gauge specifications
45
The three-axis wire gauge adopts Taiwan's H-grade high-precision roller wire gauge.
Y-direction roller wire gauge specifications
55
Z-direction roller wire gauge specifications
45
Minimum input unit mm
Pulse equivalentmm
0.001
13. Machine tool accuracy mm
Repeat positioning accuracy mm
± 0.0085
Remarks: Machine tool accuracy testing standards (high standards, high precision)
⑴JB/T 8771.2-1998 "Geometric Accuracy Inspection of Vertical Machining Centers"
⑵JB/T8771.4-1998 "Inspection of Linear Positioning Accuracy and Repeated Positioning Accuracy of Machining Centers"
⑶JB/T8771.7-1998 "Accuracy Inspection of Finished Samples of Machining Centers"
⑷JB/T8801-1998 "Technical Conditions for Machining Centers"
Positioning accuracy mm
± 0.010/300
14.Pneumatic system
Air pressure requirement Kg/cm2
≥6
Remark:
The pneumatic system is equipped with a three-point combination, pressure switch, solenoid valve, etc., to realize pneumatic tool change, spindle air blowing, pressure 6-8kg/cm2, flow rate 220L/min, and an external air gun to clean the working area.
15. Cooling system
Cooling system volume L
300
Remark:
Sichuan Jianyang cooling pump, motor power 180W, flow rate 40L/min,
Cutting cooling uses a universal nozzle to spray coolant.
16. Lubrication system
Maximum pressurekg /cm2
5
Remarks: The Valley automatic lubrication device is used to perform forced lubrication on each sliding surface and ball screw; the oil filling time interval and oil filling amount are adjustable; the lubrication tank capacity is 2L. Centralized three-axis bearings and slideways are lubricated.
17. Electric control cabinet cooling system
Hot and cold exchanger
Machine tool standard configuration
Remarks: The electric control cabinet is cooled by a heat and cold exchanger, sealed and dust-proof, with a dust-proof grade of IP65
Electric cabinet air conditioner
Machine tool options
18. Spindle cooling system
air cooling
Machine tool standard configuration
spindle fan
Oil cooler
Machine tool options
spindle fan
19. Electrical system
National standard
Remarks: It complies with the standard of GB/T5226.1-1996 "Industrial Machinery and Electrical Equipment Part 1: General Technical Conditions"; the system has complete and reliable interlocking, safety protection and fault self-diagnosis and alarm functions; it is equipped with RS232 standard communication interface and can be used with a computer Floppy disks are used to store programs (corresponding software can be provided according to user requirements); other systems can be selected according to user requirements; the electrical cabinet circuit adopts national standards, far exceeding the standards of various manufacturers, and still has its stability under harsh use conditions and durable properties.
20.Machine tool power supply
Machine tool power supply voltage range V
AC three-phase 380V ± 10% 50Hz
Total power consumption of machine tools Kva
≤ 35
21. Machine tool appearance dimensions (machine tool protection system) mm
3300mm*3100mm*2950mm
Standard color of machine tools: upper white and lower gray
Remark:
The machine tool protection device is safe, complete and reliable; it complies with GB15760-1995 "General Technical Spare Parts for Safety Protection of Metal Cutting Machine Tools"; the machine tool noise: complies with the national standard <75db
22. Mechanical weight Kg
Gross weightKg
8000
23.Normal usage conditions
Ambient temperature ℃
0—40
humidity %
≤85
Note: Our company is improving the machine at any time, so we reserve the right to change the technical parameters without prior notice. If a contract is signed, the terms of the contract shall prevail.
2. Main configuration list
serial number
name
Model or drawing number
Origin
quantity
Remark
1
Spindle unit
BT 5 0 (sleeve φ1 9 0 ) belt type
Taiwan Danquan
1 set
2
Pressurized cutting cylinder
60 00
Taiwan Danquan
1 set
3
X- direction ball screw pair
5012
Taiwan Bank of China
1 set
4
Y- direction ball screw pair
5012
Taiwan Bank of China
1 pair
5
Z- direction ball screw pair
5012
Taiwan Bank of China
1 pair
6
X direction ball wire gauge
45
Taiwan Bank of China
2 pairs
7
Y direction ball wire gauge
55
Taiwan Bank of China
2 pairs
8
Z direction ball wire gauge
55
Taiwan Bank of China
2 pairs
9
Special bearings for lead screw
3572
German FAG
6 groups
10
Screw lock nut
M35*1.5
Taiwan Yingxi
6 pieces
1 1
Spindle bearings
Japan NSK
4
12
Flexible coupling
Jinqiaotong
3 sets
1 3
Lubrication system
Single line positive displacement lubrication oil pump
japan river valley
1 set
1 4
Pneumatic system
Triplet 3000
Taiwan Airtac
1 set
15
balanced system
Liquid nitrogen balance bar
Taiwan
1 set
16
Disc tool magazine
BT50/24T horizontal
Taiwan Okada
1 set
17
CNC turntable
TK56630*630 rotary table
Taiwan
1 set
18
CNC system
KND2000M
Beijing
1 set
Optional
19
Internal protection
630 horizontal plus special
Haidong sheet metal
1 set
20
External protection
630 horizontal plus special
Guanwei sheet metal
1 set
twenty one
Electrical appliances
Circuit breakers and relays
Schneider
1 set
