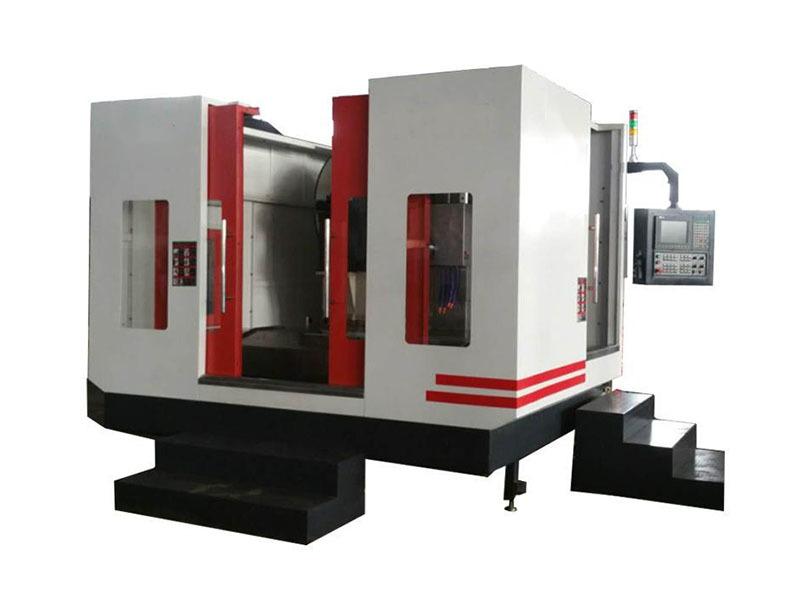

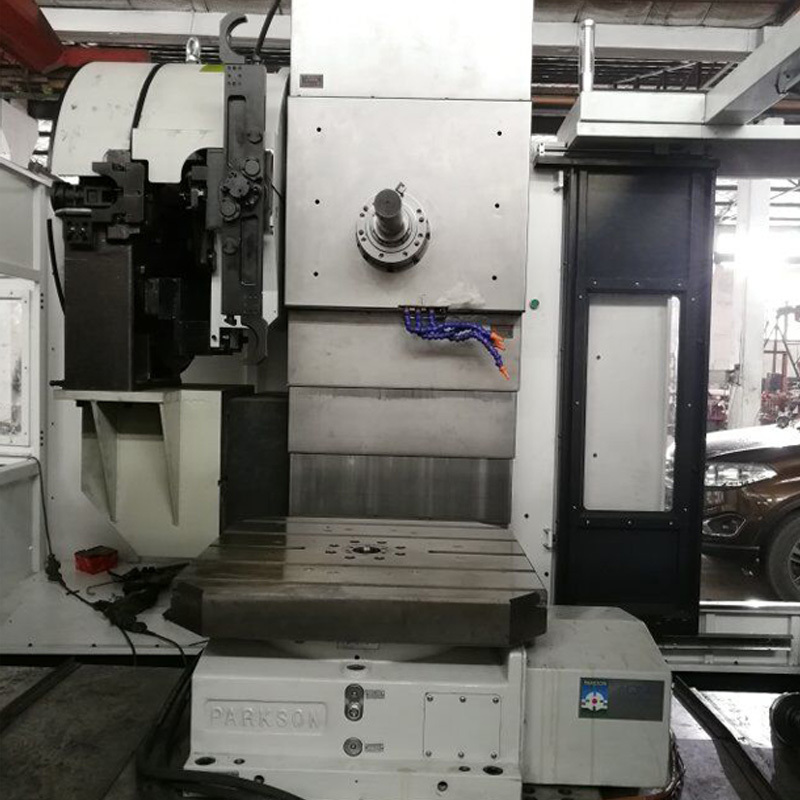

HMC400L horizontal machining center
Category:
Keyword:
HMC400L horizontal machining center
Telephone:13793702928
- Product Detail
- Feature
- Accessories
-
- Commodity name: HMC400L horizontal machining center
one. The main technical parameters
Mobile itinerary
Left and right stroke ( X) mm
650
Front and rear travel ( Z ) mm
400
Up and down stroke ( Y ) mm
500
2. Workbench specifications
Workbench surface size mm
315
Workbench load capacity Kg
350
5. Spindle taper hole ( model / sleeve diameter mm)
BT 40 /Φ 120
Remark:
The high-speed synchronous toothed belt driven spindle produced by Taiwan's Danquan has a spindle speed of up to 8,000 rpm and an overall reinforced specially designed bed structure, which is particularly suitable for special processing requirements of high strength, high efficiency, and high-quality surface finish.
6. Spindle speed ( RPM revolutions/minute )
8 000
7. Recommended motor parameters
( Main motor / Kw , A. X , Y , Z axis /Kw )
Spindle 5.5/7.5Kw;
X axis 10;
Y axis 10 ;
Z axis 15 ;
A-axis 7.7;

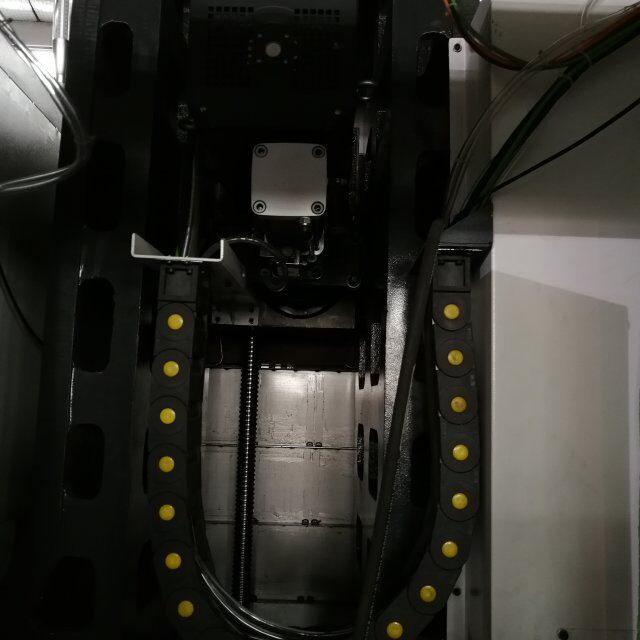

8. Ball screw
X Y Z axis ball screw specifications mm
3210
The three axes use Taiwan's Shangyin C3 high-amplitude and precision pre-tensioned ball screws.
9. Connection (transmission) method
XYZ .A motor connection method
Direct connection (transmission)
Spindle connection method
Belt (drive)
10. Feed speed G00 , G01 (rate)
G00 rapid feed mm/min
Rapid federate
X- axis rapid feed mm/min
20m/min
Y- axis rapid feed mm/min
15m/min
Z- axis rapid feed mm/min
20m/min
Minimum input unit mm
Pulse equivalentmm
0.001
12. Machine tool accuracy mm
Repeat positioning accuracy mm
± 0.0085
Remarks: Machine tool accuracy testing standards (high standards, high precision)
⑴JB/T 8771.2-1998 "Geometric Accuracy Inspection of Vertical Machining Centers"
⑵JB/T8771.4-1998 "Inspection of Linear Positioning Accuracy and Repeated Positioning Accuracy of Machining Centers"
⑶JB/T8771.7-1998 "Accuracy Inspection of Finished Samples of Machining Centers"
⑷JB/T8801-1998 "Technical Conditions for Machining Centers"
Positioning accuracy mm
± 0.010/300
13.Pneumatic system
Air pressure requirement Kg/cm2
≥6
Remark:
The pneumatic system is equipped with a three-point combination, pressure switch, solenoid valve, etc., to realize pneumatic tool change, spindle air blowing, pressure 6-8kg/cm2, flow rate 220L/min, and an external air gun to clean the working area.
14. Cooling system
Cooling system volume L
300
Remark:
Sichuan Jianyang cooling pump, motor power 180W, flow rate 40L/min,
Cutting cooling uses a universal nozzle to spray coolant.
15. Lubrication system
Maximum pressurekg /cm2
5
Remarks: Japan Valley automatic lubrication device is used to perform forced lubrication on each sliding surface and ball screw; the oil filling time interval and oil filling amount are adjustable; the lubrication tank capacity is 2L. Centralized three-axis bearings and slideways are lubricated.
16. Electric control cabinet cooling system
Machine tool standard configuration
Machine tool options
17. Spindle cooling system
air cooling
Machine tool standard configuration
spindle fan
Oil cooler
Machine tool options
spindle fan
18. Electrical system
National standard
Remarks: It complies with the standard of GB/T5226.1-1996 "Industrial Machinery and Electrical Equipment Part 1: General Technical Conditions"; the system has complete and reliable interlocking, safety protection and fault self-diagnosis and alarm functions; it is equipped with RS232 standard communication interface and can be used with a computer Floppy disks are used to store programs (corresponding software can be provided according to user requirements); other systems can be selected according to user requirements; the electrical cabinet circuit adopts national standards, far exceeding the standards of various manufacturers, and still has its stability under harsh use conditions and durable properties.
19.Machine tool power supply
Machine tool power supply voltage range V
AC three-phase 380V ± 10% 50Hz
Total power consumption of machine tools Kva
≤ 35
20. Machine tool appearance dimensions (machine tool protection system) mm
m
Standard color of machine tools: upper white and lower gray
Remark:
The machine tool protection device is safe, complete and reliable; it complies with GB15760-1995 "General Technical Spare Parts for Safety Protection of Metal Cutting Machine Tools"; the machine tool noise: complies with the national standard <75db
21. Mechanical weight Kg
Gross weightKg
4.5
22.Normal usage conditions
Ambient temperature ℃
0—40
humidity %
≤85
2. Main configuration list
serial number
name
Model or drawing number
Origin
quantity
Remark
1
Spindle unit
BT 40 (sleeve φ1 2 0 ) belt type
Taiwan Danquan
1 set
2
Pressurized cutting cylinder
40 00
Taiwan Danquan
1 set
3
X- direction ball screw pair
3210
Jiangsu Qijian
1 set
4
Y- direction ball screw pair
3210
Jiangsu Qijian
1 pair
5
Z- direction ball screw pair
3210
Jiangsu Qijian
1 pair
6
Special bearings for lead screw
Taiwan Bank of China
6 groups
7
Screw lock nut
M24*1.5
Taiwan Yingxi
6 pieces
8
Spindle bearings
Japan NSK
4
9
Flexible coupling
Jinqiaotong
3 sets
1 0
Lubrication system
Single line positive displacement lubrication oil pump
river valley
1 set
1 1
Pneumatic system
Triplet 3000
Taiwan Zhuoliang
1 set
12
balanced system
Liquid nitrogen balance bar
Domestic
1 set
13

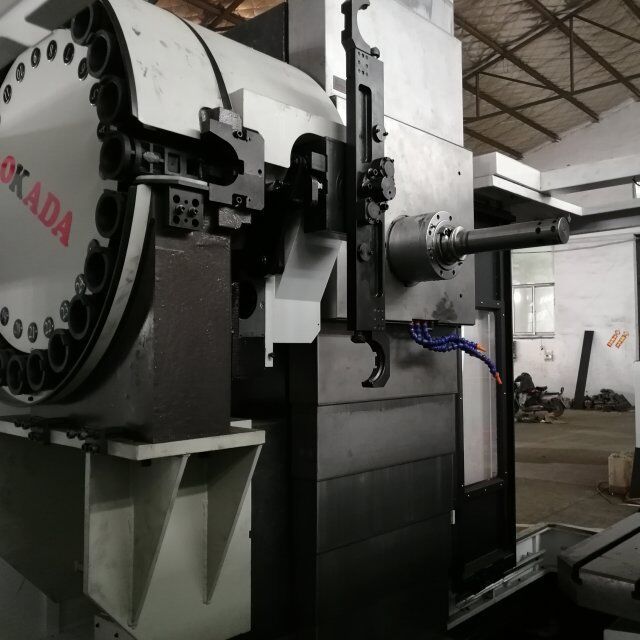

Disc tool magazine
BT40/20T horizontal
Taiwan Okada
1 set
14
CNC turntable
TK13315
Yantai
15
CNC system
Beijing KND1000
Beijing
1 set
16
Internal protection
Special for sleeping and sleeping
Six tripod sheet metal
1 set
17
External protection
Special for sleeping and sleeping
Guanwei sheet metal
1 set
18
Ball linear rail
35
Taiwan Bank of China
6 sets
