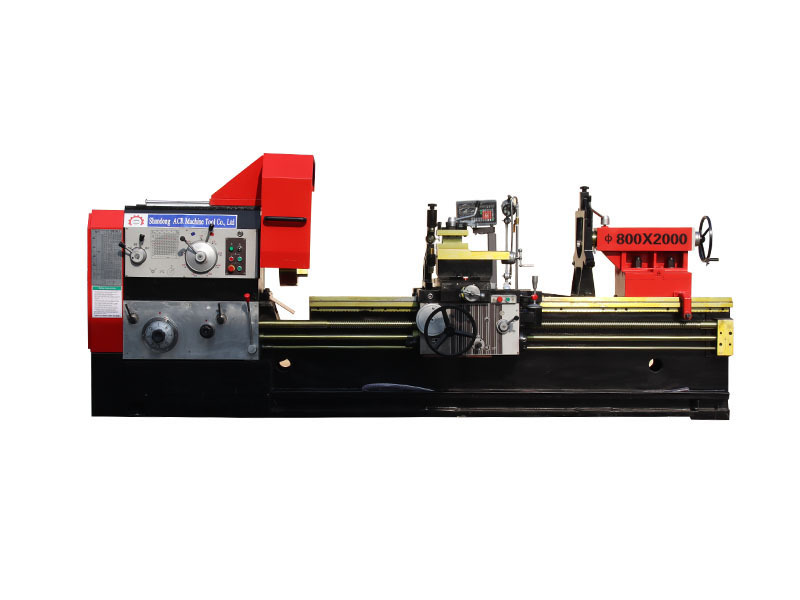

CW6163/5000 horizontal heavy-duty ordinary lathe
Category:
Keyword:
Telephone:13793702928
- Product Detail
- Feature
- Accessories
-
- Commodity name: CW6163/5000 horizontal heavy-duty ordinary lathe
1. Machine tool overview
Ordinary lathes can undertake various turning tasks. In addition to turning internal and external cylindrical surfaces, end faces and other rotating surfaces, they can also turn various commonly used metric, inch, module and diameter threads. They can also perform drilling, reaming and oil groove pulling. The precision of the processed parts is that the roundness error is ≤ 0.01mm , the cylindricity error is ≤ 0.02mm on the 200mm measuring length , and good surface roughness can be obtained. At the same time, there are also complete special configurations such as metric or imperial feed transmission systems, manual brakes and foot brakes for users to choose from.
The CW series ordinary horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning various metric, inch, module and diameter threads, and can perform drilling and oil groove pulling. It is very versatile. The horizontal lathe is widely used for batch processing of various shaft and disc parts.

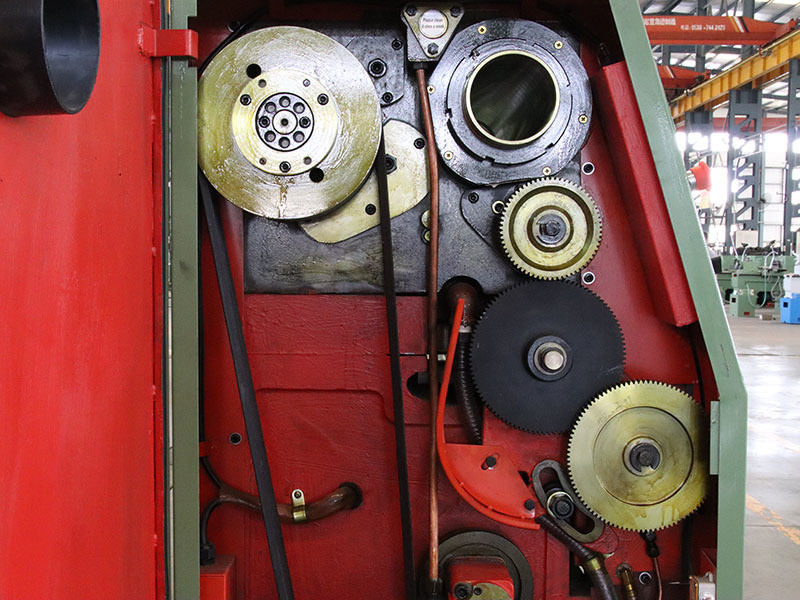

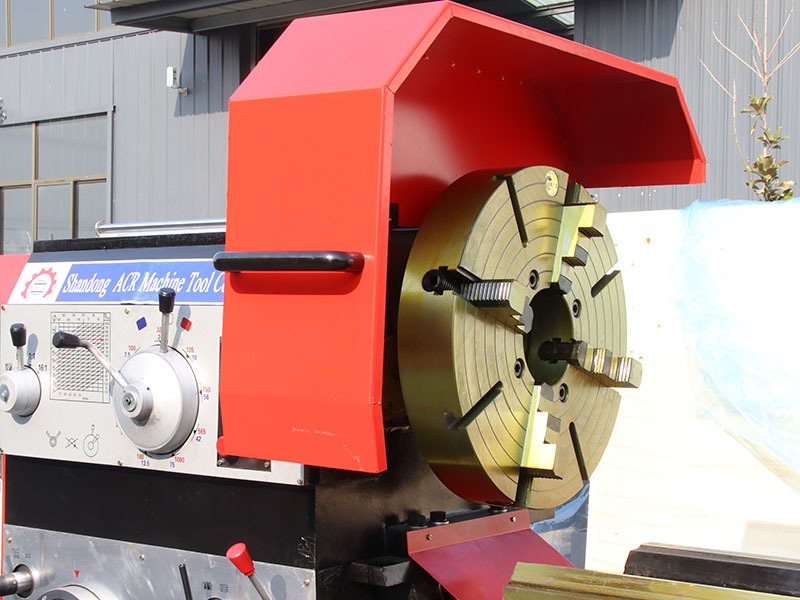

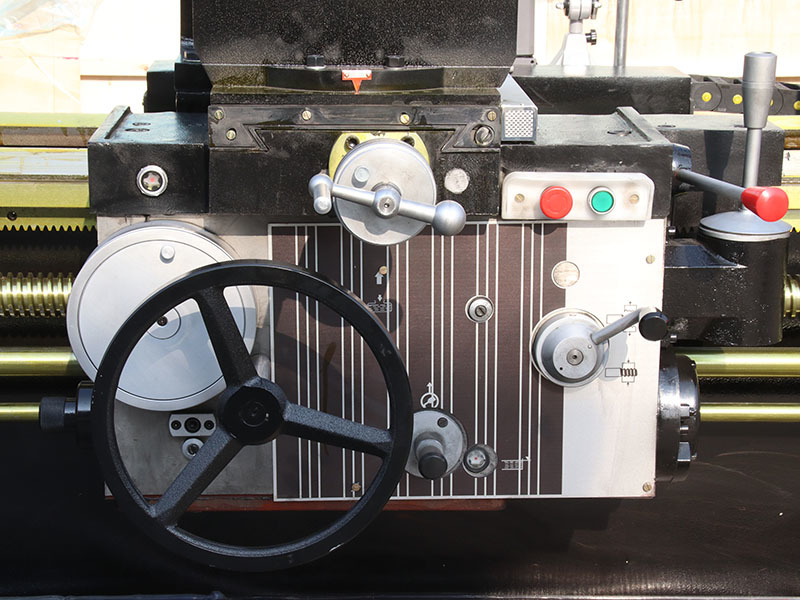

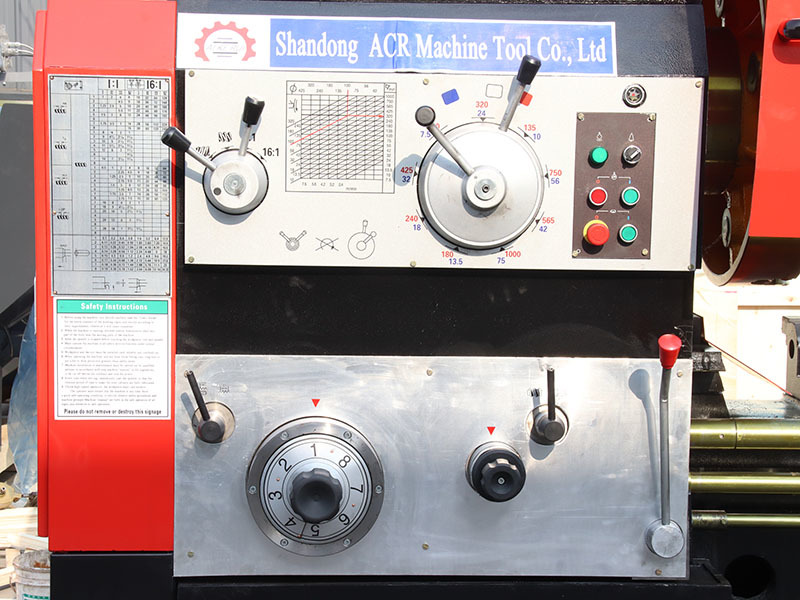

The operation of the machine tool is flexible and centralized, and the slide plate is equipped with a quick-moving mechanism. It adopts single-handle visual operation, which is pleasant and user-friendly.
The structural stiffness and transmission stiffness of the machine tool are higher than those of ordinary lathes, and the power utilization rate is high, making it suitable for powerful cutting.
Before leaving the factory, the machine tools are inspected in strict accordance with the inspection procedures and strong cutting tests are conducted to ensure that the machine tools have good accuracy stability and processing reliability.
2. Main technical specifications and parameters of machine tools
project
unit
Specification
Remark
Maximum rotation diameter of the bed
mm
f 630
Maximum workpiece length
mm
5000
Maximum rotation diameter on the skateboard
mm
f 350
Bed rail width
mm
550
Lathe bed quenching hardness
mm
HRC50
Spindle end type and code
·
A2-15
Spindle front hole taper
·
1:20; metric 120
Spindle through hole diameter
mm
f 102
Spindle speed range
r/min
6～800
Spindle speed series
·
Level 18
main motor power
w _
11
Longitudinal and transverse feed levels
class
72
Longitudinal feed range
mm/r
0.1-1.52 1.6-24
lateral advance
mm/r
1:2
Tractor rapid traverse speed
m/min
4
Lead screw pitch
·
12
Metric thread range
mm
1～240
Valid number of metric threads
kinds
50
Valid number of inch threads
kinds
27
Range of inch threads
t/inch
1-28
Number of module thread types
kinds
53
Module thread range
mm
0.5-120
Valid number of diameter pitch threads
kinds
twenty four
Effective range of diameter pitch thread
t/inch
1-28
Center frame rotation angle
mm
plus or minus 90
Maximum lateral travel of lower tool post
mm
420
Maximum stroke of upper tool rest
mm
200
Tailstock sleeve travel
mm
250
Tailstock sleeve taper
morse
6
Lateral movement of the tailstock
mm
±20
Machine weight
kg
about 65 00
Machine tool appearance (length × width × height)
mm
56 70×1320×1490
cooling method
·
external cooling
total electricity source
Voltage
V
AC380
Voltage fluctuation range
·
- 1 0～＋ 10 %
frequency
Hz
50 ± 2
Total power capacity
KVA
about 16
