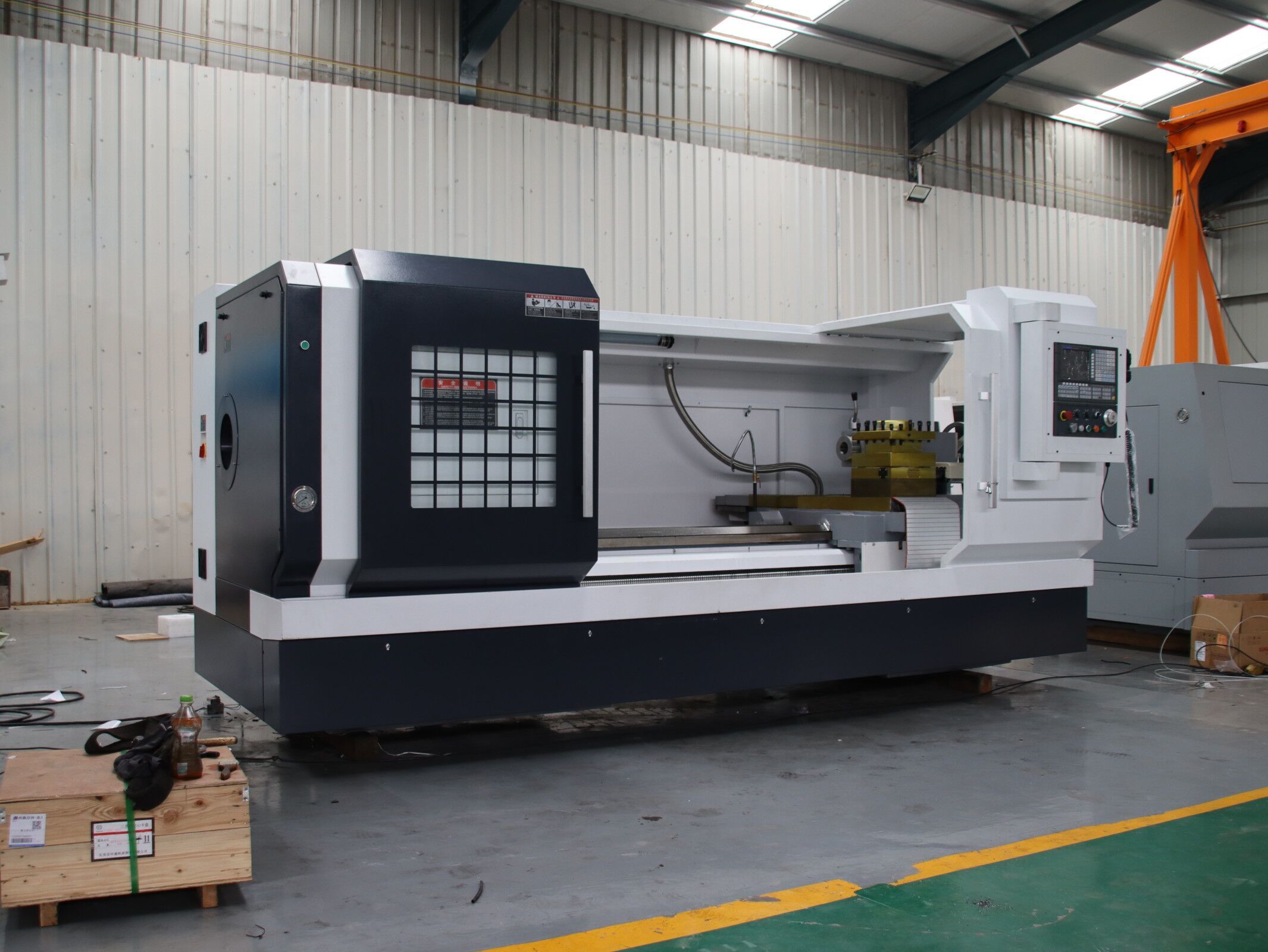

CK6180 CNC lathe with flat bed
Telephone:13793702928
- Product Detail
- Feature
- Accessories
-

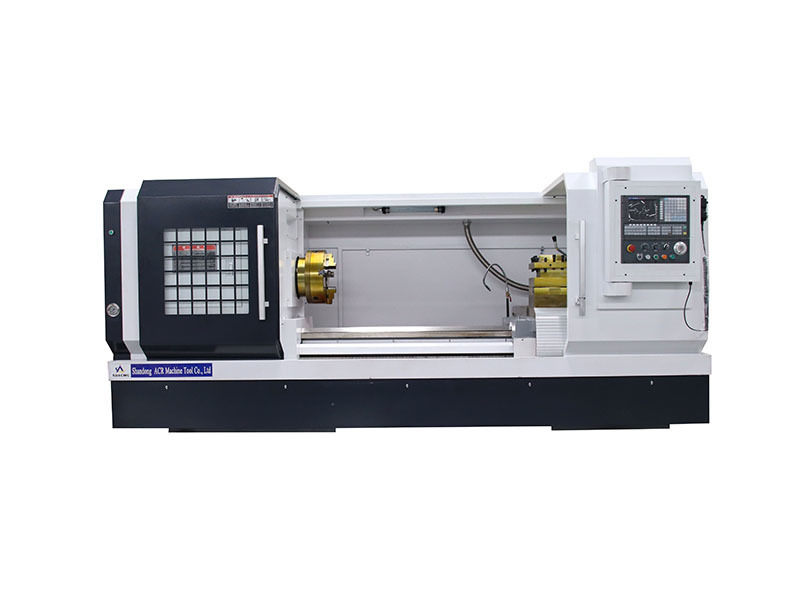

- Commodity name: CK6180 CNC lathe with flat bed
1 Structural characteristics and functional requirements of machine tools
1.1 This series of machine tools is a mature product that the company mainly exports. It has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
1.2 The optimized design of the headstock is suitable for turning discs and shafts. It can process straight lines, arcs, metric threads, and multi-start threads. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.

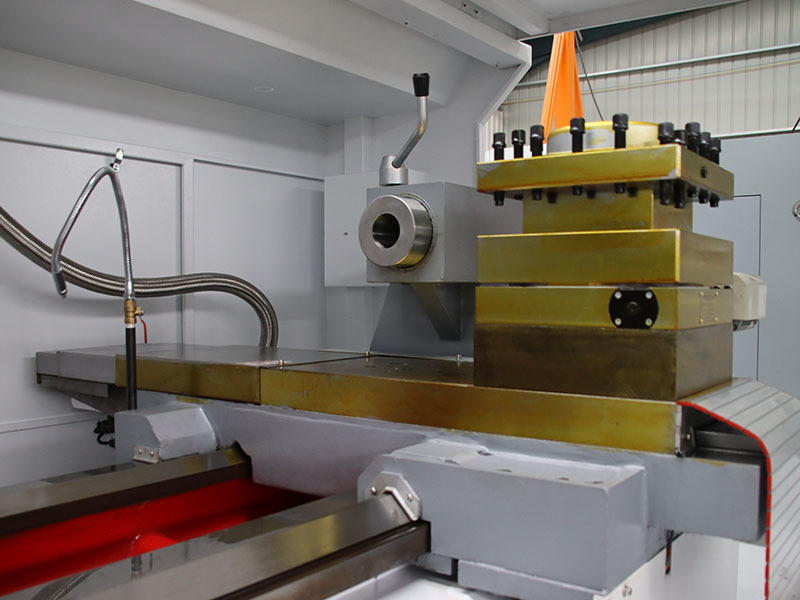

1.3 The machine tool guide rails and saddle guide rails are made of hard guide rails made of special materials. After high-frequency quenching, they are super hard and wear-resistant, durable and have good machining accuracy maintenance.

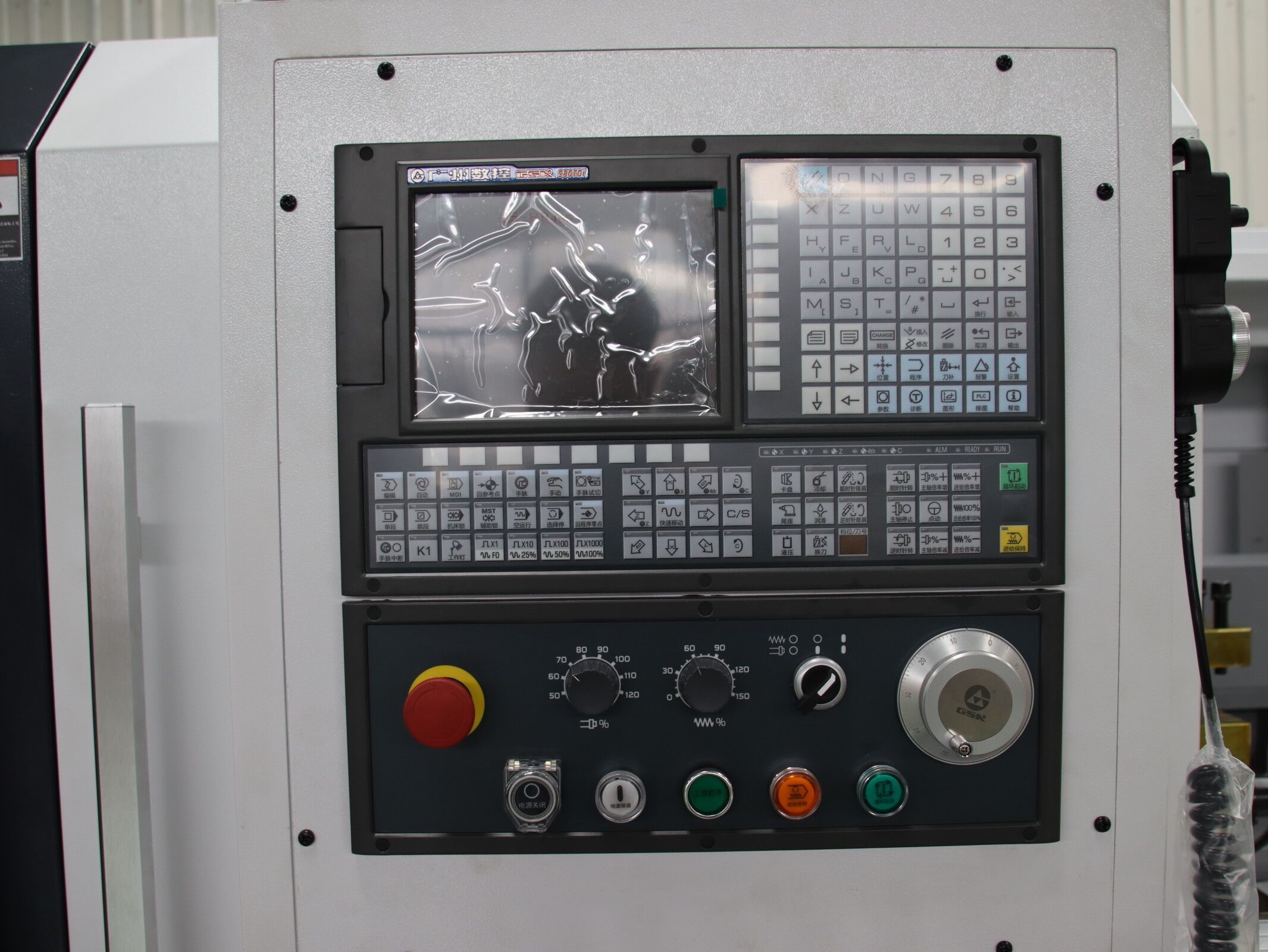

1.4 The CNC system adopts GSK98 0 T DI system, using domestic famous ball screws and high-precision screw bearings.
1.5 The spindle adopts a high-precision spindle bearing set and has been precision assembled and dynamically balanced tested to ensure high spindle accuracy, low noise and strong rigidity.
1.6 Each lubrication point uses a forced automatic lubrication device to lubricate the screw and guide rail at fixed points and quantitatively . When there is an abnormal state or insufficient oil, a warning signal is automatically generated.

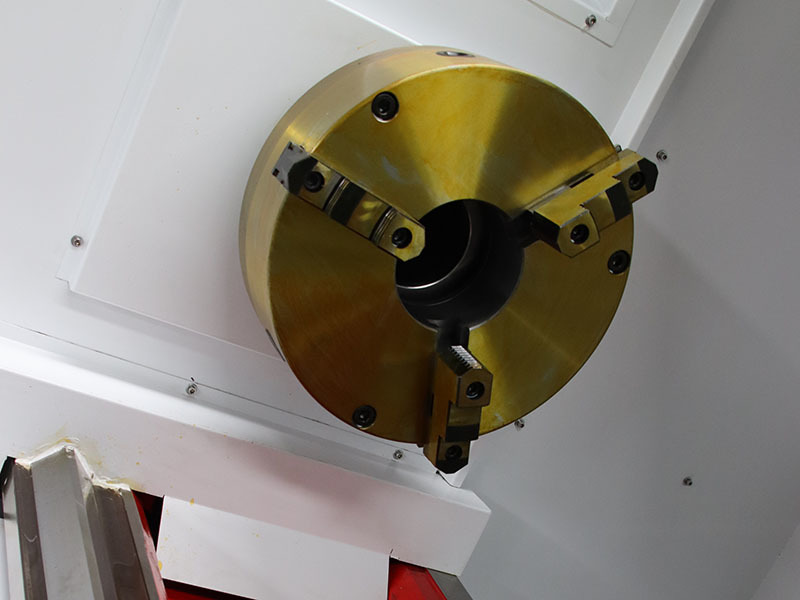

The 1.7 comes standard with a domestic three-jaw self-centering manual chuck.
1.8 The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and facilitate the cleaning of iron filings.
2 CK618 0 main technical parameters and configuration table
project
unit
parameter
CK618 0 /1500
Maximum rotation diameter of the bed
mm
φ 8 0 0
X guide rail span
mm
330
Z guide rail span
mm
600
Maximum rotation diameter on the slide
mm
φ480 _
Center distance
mm
1500
Maximum disk processing diameter
8 0 0
Maximum turning length
mm
1500
Center high
Distance from bed
mm
400
from the ground
mm
1160
Spindle through hole diameter
mm
φ 105
Spindle speed level
rpm
30-84 , 53-150 , 125-350 , 300-800 r /min
Bar diameter
mm
φ 10 4
Optional hollow chuck tie rod through hole
mm
φ 88
Spindle end type
A2-11 _
chuck
mm
Φ 400 manual three-jaw chuck
Spindle taper hole taper
No
Metric 1 2 0 , 1:20 _ _
Spindle limit speed
rpm
8 0 0
Tailstock sleeve diameter
mm
φ 130
Tailstock sleeve inner hole taper
No
MT6 # _
Tailstock sleeve travel
mm
265
Tailstock form
Ordinary hand crank
Number of knives in electric tool holder
Bundle
4
Knife size
mm
□ 32 × 32 ( four stations )
Lead screw model
X direction
FYND3206-3-P3
Z direction
FYND 63 10-5-P4
X/Z rapid movement speed
m/min
4/5
X- direction travel
mm
435
Z- direction travel
mm
1500
Minimum setting unit
mm
0.001
main motor power
KW
15( frequency conversion )
Total power
KW
20
Machine tool net weight
Kg
60 00
Overall dimensions (length × width × height)
mm
4000x2000x2000
3. Machine tool configuration list
name
Specifications and models
quantity
brand
Remark
Control System
Guangshu 98 0TC3
1 set
Guangshu
Domestic
Spindle motor
1 5 KW frequency conversion
1 set
Nanjing Global
Domestic
Spindle structure
Precision assembly
1 set
self made
Domestic
Spindle bearings
NN3032K/W33P5;234432M/SP
NN3026K/W33P5
1 set each
Wafangdian
Domestic
guide
hard rail
1 set
self made
Domestic
X-direction ball screw
FYND3206
1 set
Han River
Domestic
Z- direction ball screw
FYND 63 10
1 set each
Han River
Domestic
X-direction screw bearing
BS2562/P4DB;6205
1 set each
NSK
Japan
Z- direction screw bearing
BS4090/P4TBT;BS4090/P4DT
1 set each
SK _
Japan
Knife holder
HAK-21280
1 set
Hongda
Domestic
Automatic lubrication device
RBCLB-3 ZK
1 set
Domestic
Three-jaw manual chuck
K11 400
1 set
Wafangdian
Domestic
cooling pump
1 set
Domestic
Hydraulic station (optional)
60L
1 set
Domestic
Hydraulic chuck (optional)
KT12-3 / KT1 5-3 _
1 set
Domestic
