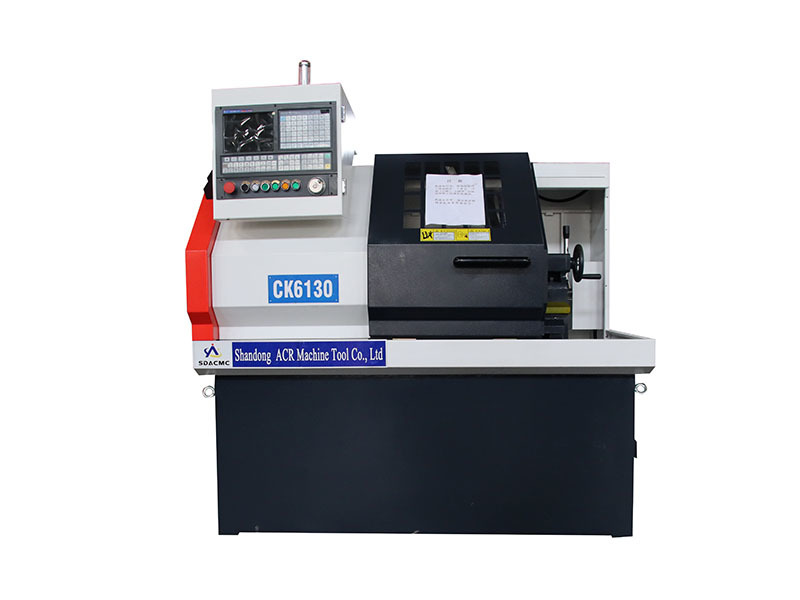

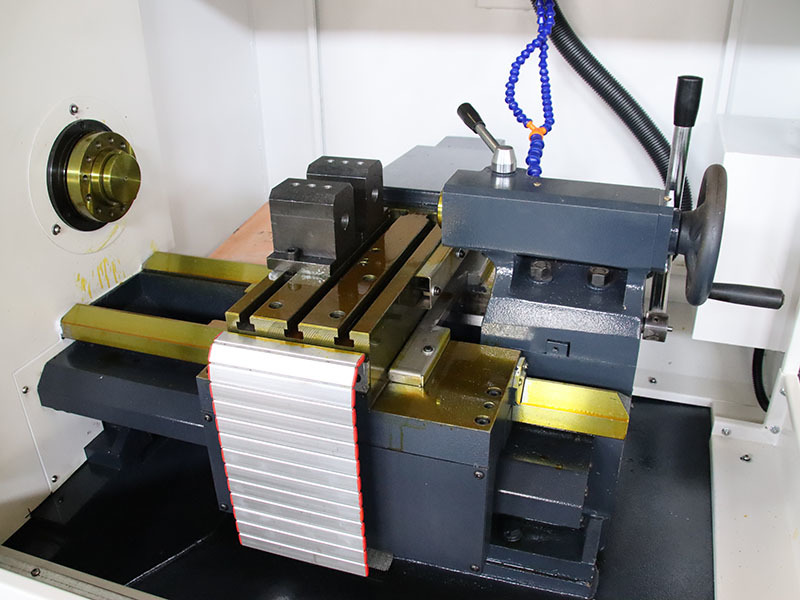

- Commodity name: CK6130 CNC lathe with flat bed
1 Structural characteristics and functional requirements of machine tools
1.1 This series of machine tools is a mature product mainly exported by Shandong Ekerui Machine Tool Co., Ltd. It has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
1.2 The optimized design of the headstock is suitable for turning discs and shafts. It can process straight lines, arcs, metric threads, and multi-start threads. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.

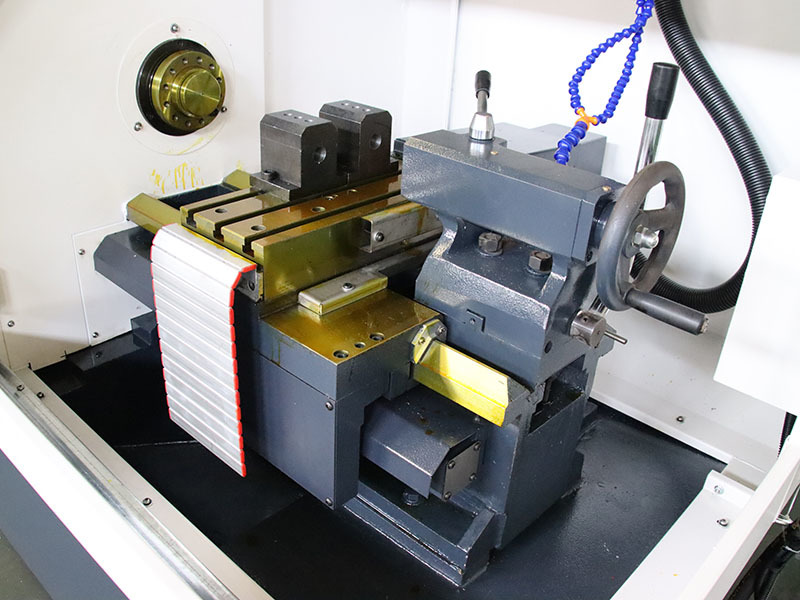

1.3 The machine tool guide rails and saddle guide rails are made of hard guide rails made of special materials. After high-frequency quenching, they are super hard and wear-resistant, durable and have good machining accuracy maintenance.
1.4 The CNC system adopts GSK980TC3 system, using domestic famous ball screws and high-precision screw bearings.
1.5 The spindle adopts a high-precision spindle bearing set and has been precision assembled and dynamically balanced tested to ensure high spindle accuracy, low noise and strong rigidity.
1.6 Each lubrication point uses a forced automatic lubrication device to lubricate the screw and guide rail at fixed points and quantitatively . When there is an abnormal state or insufficient oil, a warning signal is automatically generated.
The 1.7 comes standard with a domestic three-jaw self-centering manual chuck.
1.8 The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and facilitate the cleaning of iron filings.
2. Main specifications and parameters of machine tools
serial number
project
unit
parameter
CK6130
1
Maximum rotation diameter of the bed
mm
Φ300
2
X guide rail span
mm
160
3
Z guide rail span
mm
230
4
Maximum rotation diameter on the slide
mm
Φ100
5
Center distance
mm
350
6
Maximum turning length
mm
230
7
Center high
Distance from bed
mm
150
from the ground
mm
1065
8
Spindle through hole diameter
mm
Φ48
9
Bar diameter
mm
Φ45
10
Equipped with hollow chuck tie rod through hole
mm
Φ40
11
Spindle end type
A2-5
12
chuck
mm
Chuck /Φ160 manual chuck (optional)
13
Spindle taper hole taper
No
chuck
14
Spindle limit speed
rpm
2500
15
Tailstock sleeve diameter
mm
Φ52
16
Tailstock sleeve inner hole taper
No
MT4#
17
Tailstock sleeve travel
mm
80
18
Tailstock configuration
Ordinary hand crank
19
Number of knives in electric tool holder
Bundle
4
20
Knife size
mm
□20×20(four stations)
twenty one
Lead screw model
X direction
mm
FDC2506-P3
Z direction
mm
FDC3210-P3
twenty two
X/Z rapid movement speed
m/min
6/10
twenty three
X-direction travel
mm
280
twenty four
Minimum setting unit
mm
0.001
25
main motor power
KW
4
26
Total power
KW
10
27
Machine tool net weight
Kg
1700
28
Overall dimensions (length × width × height)
mm
2200×1160×1620
3. Main configuration of machine tools
Standard configuration
sequence
name
quantity
Standard configuration
Number
1
CNC system
1 set
Guangshu 80T B3
2
Clamping method
1 set
160 manual three-jaw chuck or chuck
3
tailstock
1 set
Manual tailstock
4
X- direction ball screw
1 set
Domestic
5
Z- direction ball screw
1 set
Domestic
6

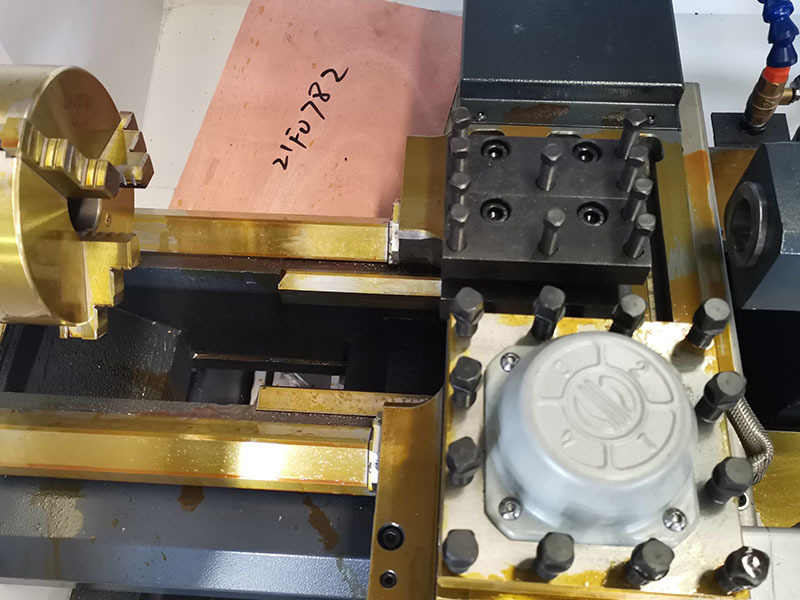

Four-station electric tool holder
1 set
LD4B-CK0625
7
X , Z direction screw bearings
1 set / unit each
Domestic
8
X , Z direction coupling
1 set / unit each
Domestic outsourcing
9
Spindle bearings
1 set / unit
Domestic
10
fuselage casting
1 set
Cast with high quality resin sand
11
Spindle assembly
1 set / unit
Assembled spindle
12
paint
1 set / unit
The color can be configured according to customer requirements. If there are no special requirements, it will be configured according to our company's standard color.
13
lubricating
1 set / unit
Domestic electric lubricating oil pump, lubricating oil circuit installed
14
appendix
1 set / unit each
