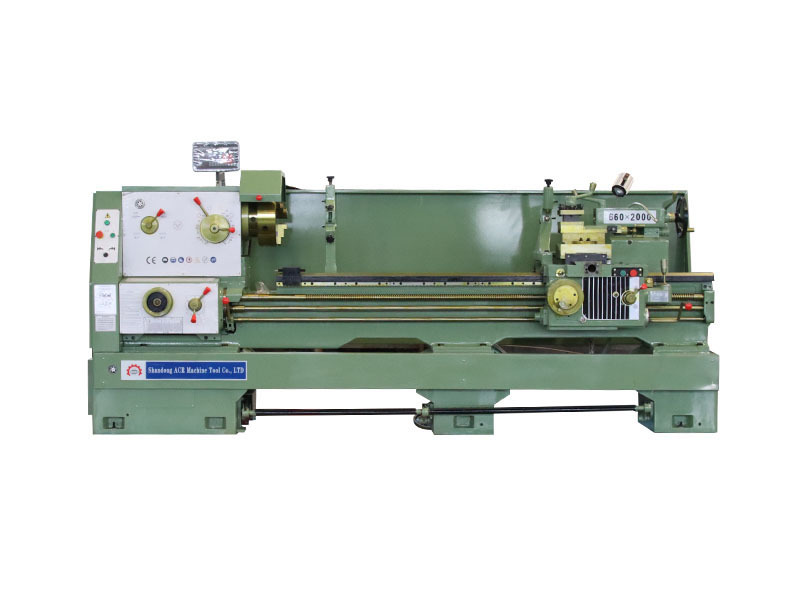

CA6150 horizontal ordinary lathe

The lathe bed is wider than ordinary lathes and has high rigidity. The guide rail surface is medium-grade quenched and wear-resistant. The operation of the machine tool is flexible and centralized. The slide plate is equipped with a quick-moving mechanism and uses a single handle for visual operation. It is user-friendly. The machine tool structural steel and transmission steel are higher than ordinary lathes. It has high power utilization and is suitable for powerful and high-speed cutting of spindle apertures. Large, with a full range of optional accessories.

Category:

CA series manual lathe

Keyword:

Email: acrcnc@acrtool.com

Telephone:13793702928

MESSAGE

Product Detail
Feature
Accessories

Commodity name: CA6150 horizontal ordinary lathe

model			CA6150B
Rotation diameter on the bed			Φ500mm（20″）
Rotation diameter of tool holder			Φ300mm（12″）
Length between two thimbles			750/1000/1500/2000
Bed width and hardness			400mm (15 19/25″) and Rc52
Toolbar section			25×25mm
Spindle	Spindle speed range		10--1400r/min（24kinds）
	Spindle inner hole and spindle head type		Φ82mm（3 9/64″）D8
	Front spindle hole taper		Φ90mm（1:20）
Feed	Feed quantity		64Kinds (for each)
	Longitudinal feed standard per spindle revolution		0.11--1.6mm/r
	small feed		0.028--0.11mm/r
	Increase feed		1.76--6.4mm/r
	Metric thread range		1--192mm (44 kinds)
	Inch thread range		1/2--24t.pi（28 kinds）
	Module thread range		0.25--48 (module) (39 kinds)
	Diameter thread range		1/2—96D.P (38 kinds)
	Saddle longitudinal fast		4m/min
	Cross tool holder stroke		320mm (12 1/2″)
Small tool holder moving stroke			140mm (5 1/2″)
tailstock	Maximum stroke of spindle at the end of bed		150mm (5 29/32″)
	Bottom spindle diameter		Φ75mm（2 61/64″）
	Spindle hole taper at bed end		Morse NO.5
main motor power			7.5KW（10Hp）
Net weight /gross weight		Processing length 750mm	2070/2680kg
		1000mm	2150/2760kg
		1500mm	2300/3020kg
		2000mm	2650/3420kg
Outline size /Package Size		750mm	241810001267/260015202010
		1000mm	266810001267/285015202010
		1500mm	316810001267/335015202010
		2000mm	366810001267/385015202010
